Designed for connecting 1/8-27 Male NPT to 7/16-20 Male SAE 45° Flare threads, the Brass Adapter, 1/8-27 Male NPT To 7/16-20 Male SAE 45 deg Flare, 45 deg Elbow is suited for routing lines in tight or angled installations. The 45° elbow configuration helps manage directional changes where straight fittings aren't practical, and the brass construction offers reliable performance across a broad range of media and temperatures, including a rated minimum working temperature of -65°F.
This adapter is compatible with LP and natural gas, instrumentation, refrigeration, power steering, hydraulic, and pneumatic systems. It accommodates a 0.25-inch tube OD and carries a catalog reference of C1GX25. The fitting falls under the Pipe to 45° Flare Adapters product model family and is identified by UNSPSC code 40183101.
SKU: IG54X4
Supplier Part Number (MPN): 54X4
|
Application
LP and natural gas,
flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems. |
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.13
|
End Size 2
0.44
|
End Type 1
NPTF
|
End Type 2
SAE
|

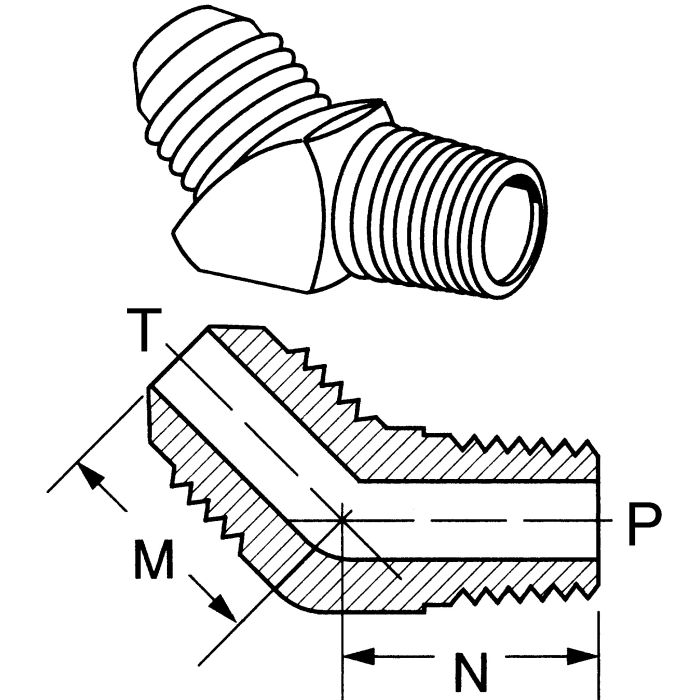

M
0.67
|
Minimum Working Temperature
-65
|
N
0.64
|
Supplier Part Number
54X4
|
Thread 1
1/8-27
|
Thread 2
7/16-20
|
Thread Sealant
No
|
Tube O.D.
0.25
|
Tube O.D.
0.25
|
Product Weight
0.04 lbs
|
