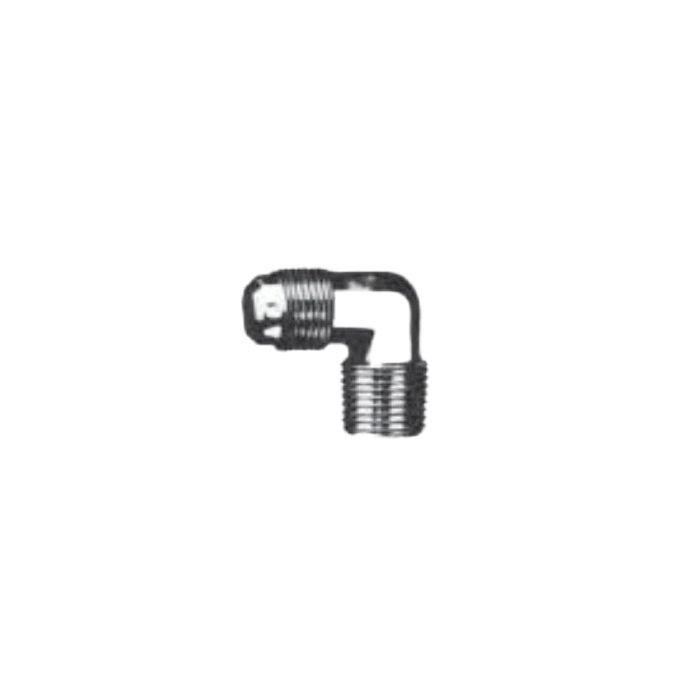

Brass Adapter, 3/4-14 Male NPT To 7/8-14 Male SAE 45 deg Flare, 90 deg Elbow

Description & Features

Designed for precise industrial applications this Brass Adapter from ACR Industries ensures reliable connections between distinct thread types. It features a 3/4-14 Male NPT and 7/8-14 Male SAE 45-degree Flare forming a 90-degree elbow for secure and effective fluid or gas transfer.

Made with high-quality brass the adapter guarantees durability and resistance to corrosion making it an ideal choice for demanding environments. With a tube O.D. of 0.63 it provides optimal fit and performance for your specific needs.

The Brass Adapter 3/4-14 Male NPT To 7/8-14 Male SAE 45 deg Flare 90 deg Elbow does not require thread sealant simplifying installation and ensuring leak-free operations.

MPN: 249X10X12

Supplier Part Number: 249X10X12

Specifications

Alternate Part Numbers Alternate Part Number C1BG53, Alternate Part Number MI-08754457, Alternate Part Number MINO-01769X80116	Brand ACR Industries	Brand ACR Industries	Pack Size 1.00	UOM EA	Supplier Part Number 249X10X12	Thread 1 3/4-14	Thread 2 7/8-14	Thread Sealant No	Tube O.D. 0.63	Tube O.D. 0.63	Product Weight 0.23 lbs

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
249X10X12 Brass Male NPT To SAE 90 deg Elbow	0.63	3/4-14	7/8-14
249X4X8 Brass Male NPT To SAE 90 deg Elbow	0.25	1/2-14	7/16-20
249X5X6 Brass Male NPT To SAE 90 deg Elbow	0.38	3/8-18	1/2-20
249X8X12 Brass Male NPT To SAE 90 deg Elbow	0.5	3/4-14	3/4-16
NP10-294F Brass Male NPT To SAE 90 deg Elbow	0.38	1/4-18	5/8-18	0.88	1
NP10-299F Brass Male NPT To SAE 90 deg Elbow	0.5	3/8-18	3/4-16	1.12	1.22

Product Questions & Answers (2)

Question by: Earl W on Nov 1, 2025, 8:54 PM

trying to hook a 3/4-14 npt port over to a 45 flare line, is this the elbow that does that?

Answer by: Customer Support on Nov 3, 2025, 12:54 PM

For tying two different thread styles together, it bridges a 3/4-14 male NPT connection on one side to a 7/8-14 male SAE 45 degree flare on the other, and it’s built as a 90 degree elbow.

Question by: Dwight M on Jun 25, 2025, 7:16 AM

Will this elbow fitting hold up to regular use, or is it more for occasional setups?

Answer by: Customer Support on Jun 27, 2025, 6:18 AM

Constructed from high-quality brass, this adapter offers good durability and corrosion resistance, making it suitable for demanding environments and frequent use.
