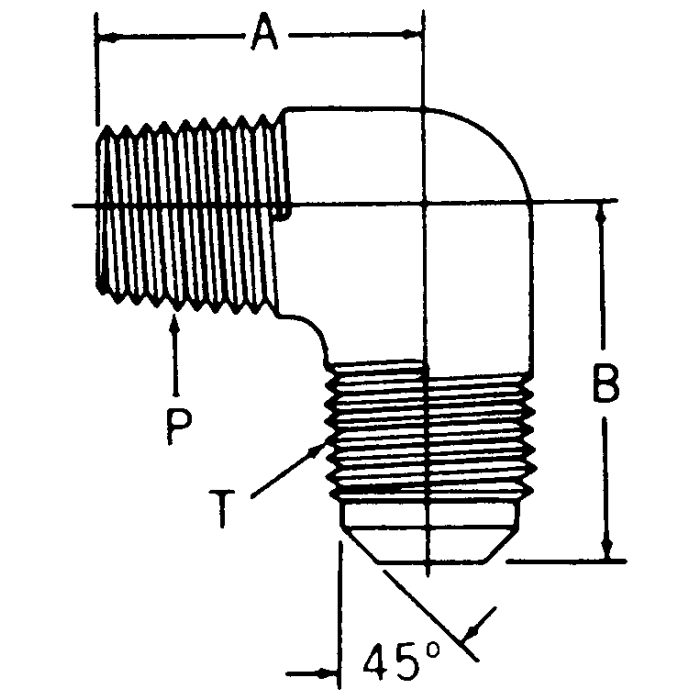

Configured as a 90-degree elbow, this brass adapter connects a 1/2-14 Male NPT thread to a 7/16-20 Male SAE 45-degree flare, making it well suited for routing hydraulic and fluid lines where a directional change is required at the fitting connection. The 0.25-inch tube OD rating aligns with compact line configurations commonly found in mobile and industrial hydraulic assemblies.
The Brass Adapter, 1/2-14 Male NPT To 7/16-20 Male SAE 45 Deg Flare, 90 Deg Elbow is manufactured by Acr Industries under catalog number C1BG61. Brass construction provides reliable corrosion resistance across a broad range of hydraulic fluids and compatible media. The NPT-to-SAE flare elbow configuration handles mixed-standard connections without additional adapters, simplifying line assembly in tight installations.
SKU: 249X4X8
Supplier Part Number (MPN): 249X4X8
Alternate Part Numbers: C1BG61, MI-08754458, MINO-01769X80117
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1BG61, Alternate Part Number MI-08754458, Alternate Part Number MINO-01769X80117
Brand
ACR Industries
Brand
ACR Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
249X4X8
Thread 1
1/2-14
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.10 lbs
Similar Products
Model Number
Tube O.D.
Thread 1
Thread 2
A
B
Price
Action
249X10X12Brass Male NPT To SAE 90 deg Elbow
0.63
3/4-14
7/8-14
249X4X8Brass Male NPT To SAE 90 deg Elbow
0.25
1/2-14
7/16-20
249X5X6Brass Male NPT To SAE 90 deg Elbow
0.38
3/8-18
1/2-20
249X8X12Brass Male NPT To SAE 90 deg Elbow
0.5
3/4-14
3/4-16
NP10-294FBrass Male NPT To SAE 90 deg Elbow
0.38
1/4-18
5/8-18
0.88
1
NP10-299FBrass Male NPT To SAE 90 deg Elbow
0.5
3/8-18
3/4-16
1.12
1.22
