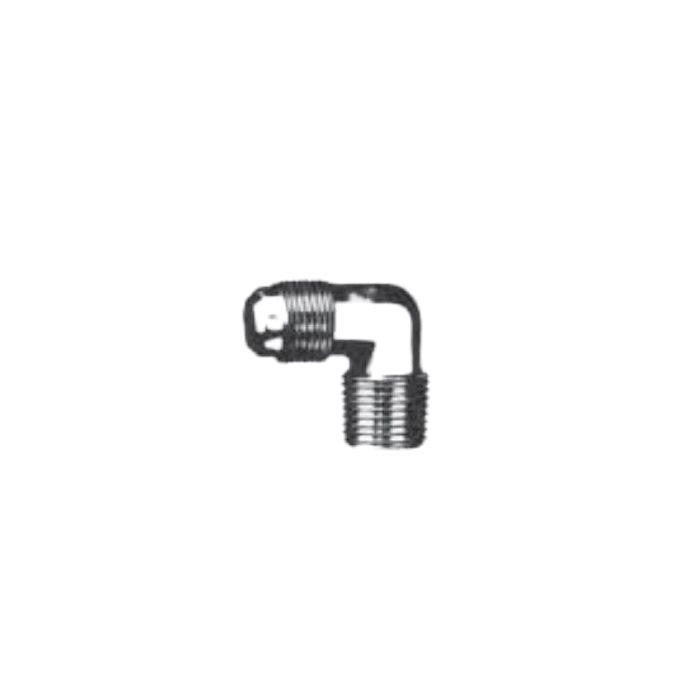

Ideal for industrial hydraulic systems, the Brass Adapter from ACR Industries offers a reliable connection solution with its 90-degree elbow design. This adapter features a 3/4-14 male NPT thread on one end and a 3/4-16 male SAE 45-degree flare thread on the other, ensuring a secure and leak-resistant fit between different types of hydraulic components. Constructed from durable brass, it provides excellent corrosion resistance and long-term performance in demanding environments.
With a tube outer diameter of 0.5 inches, this adapter is compatible with a variety of hydraulic applications that require precise alignment and robust connections. Its compact design is perfect for use in tight spaces, making it an essential component in machinery and equipment where space efficiency is critical. The Brass Adapter, 3/4-14 Male NPT To 3/4-16 Male SAE 45 deg Flare, 90 deg Elbow is a dependable choice for maintaining optimal system functionality.
SKU: 249X8X12
Supplier Part Number (MPN): 249X8X12
Alternate Part Numbers: C1BG69, MI-08754460, MINO-01769X80119
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1BG69, Alternate Part Number MI-08754460, Alternate Part Number MINO-01769X80119
Brand
ACR Industries
Brand
ACR Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
249X8X12
Thread 1
3/4-14
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.21 lbs
Similar Products
Model Number
Tube O.D.
Thread 1
Thread 2
A
B
Price
Action
249X10X12Brass Male NPT To SAE 90 deg Elbow
0.63
3/4-14
7/8-14
249X4X8Brass Male NPT To SAE 90 deg Elbow
0.25
1/2-14
7/16-20
249X5X6Brass Male NPT To SAE 90 deg Elbow
0.38
3/8-18
1/2-20
249X8X12Brass Male NPT To SAE 90 deg Elbow
0.5
3/4-14
3/4-16
NP10-294FBrass Male NPT To SAE 90 deg Elbow
0.38
1/4-18
5/8-18
0.88
1
NP10-299FBrass Male NPT To SAE 90 deg Elbow
0.5
3/8-18
3/4-16
1.12
1.22
Product Questions & Answers (3)
Question by: Earl H on Nov 24, 2025, 5:36 PM
got a line with 3/4-14 male npt on one side and need to hit a 45 flare, is this the right elbow for that?
Answer by: Customer Support on Nov 26, 2025, 7:05 AM
For that hookup, you want an adapter with 3/4-14 male NPT on one end and 3/4-16 male SAE 45 degree flare on the other, and this part matches those thread sizes in a 90 degree elbow.
Question by: Denise B on Jun 12, 2025, 1:52 PM
got a 3/4 NPT male port on a pump housing and need to run a line out at a right angle, will this fitting make that work or do I need something different?
Answer by: Customer Support on Jun 14, 2025, 6:46 AM
Right angle transition from a 3/4-14 male NPT thread to a 3/4-16 male SAE 45 degree flare is exactly what this elbow handles. The 90 degree bend lets you turn the line direction without any extra fittings in between, which keeps things clean when clearance is tight around the pump.
Question by: Clint P on Sep 5, 2025, 6:38 PM
Will this fitting work to adapt a pipe thread to a flare fitting at a 90-degree angle?
Answer by: Customer Support on Sep 7, 2025, 4:16 PM
This brass adapter is designed to connect a 3/4-14 male NPT pipe thread to a 3/4-16 male SAE 45-degree flare at a 90-degree angle.
