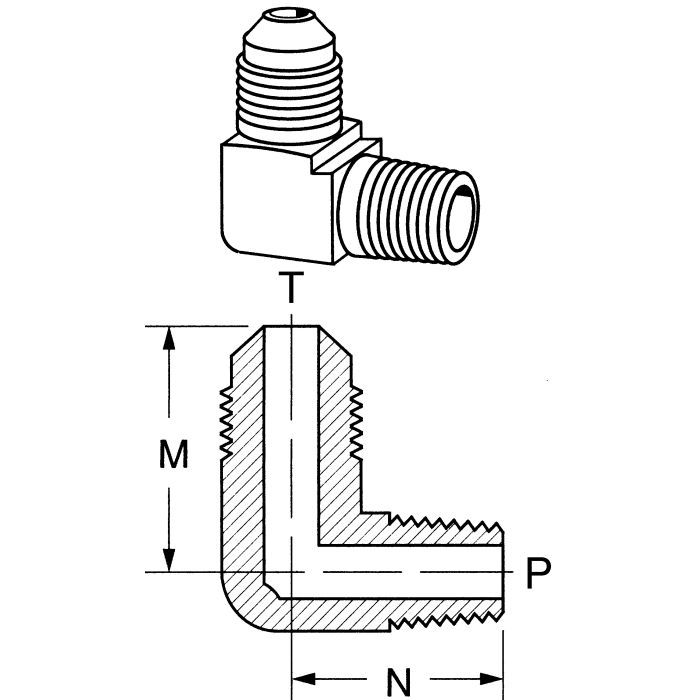

Brass Adapter, 1/2-14 Male NPT To 7/8-14 Male SAE 45 deg Flare, 90 deg Elbow

Description & Features

This brass adapter features a 1/2-14 male NPT end and a 7/8-14 male SAE 45-degree flare end, configured as a 90-degree elbow. It is identified by catalog number C1GW94 and Supplier Part Number 49X10.

The Brass Adapter, 1/2-14 Male NPT To 7/8-14 Male SAE 45 deg Flare, 90 deg Elbow facilitates connections between pipe and 45-degree flare fittings. It offers a reliable solution for adapting different thread types within hydraulic applications.

SKU: IG49X10

Supplier Part Number (MPN): 49X10

Specifications

Application Other	End Gender 1 13554	End Gender 2 13556	End Size 1 0.88	End Size 2 0.50	End Type 1 UNF	End Type 2 NPTF	M 1.41	N 1.38	Supplier Part Number 49X10	Thread 1 1/2-14	Thread 2 7/8-14	Thread Sealant No	Tube O.D. 0.63	Tube O.D. 0.625	Product Weight 0.35 lbs

Product Questions & Answers (1)

Question by: Connie B on Jul 1, 2025, 1:29 PM

Just want to make sure, this elbow is brass and not some other kind of metal, right?

Answer by: Customer Support on Jul 3, 2025, 6:37 AM

Yes, this adapter is made from brass.
