Designed for connecting 1/4-18 Male NPT to 7/16-20 Male SAE 45° Flare fittings at a 90-degree angle, the Brass Adapter, 1/4-18 Male NPT To 7/16-20 Male SAE 45 deg Flare, 90 deg Elbow is well-suited for routing lines in tight or angled installations. Brass construction makes it compatible with a broad range of media, including LP and natural gas, instrumentation fluids, refrigerants, power steering fluid, and hydraulic and pneumatic systems.

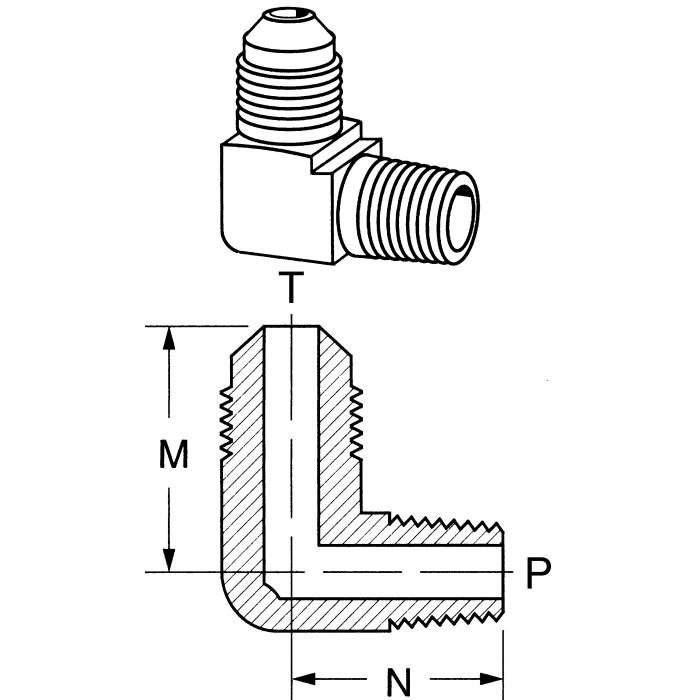

With an M dimension of 0.88 in. and an N dimension of 0.94 in., this compact elbow fits confined assemblies where straight adapters aren't practical. The 0.25 in. tube O.D. and a minimum working temperature rating of -65°F reflect suitability for demanding service conditions. Catalog number C1GW97 is referenced for cross-identification purposes.
SKU: IG49X4X4
Supplier Part Number (MPN): 49X4X4
|
Application
LP and natural gas,
flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems. |
Drop Dimension
0.99
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.25
|
End Size 2
0.44
|
End Type 1
NPTF
|
End Type 2
SAE
|
M
0.88
|
Minimum Working Temperature
-65
|
N
0.94
|
Supplier Part Number
49X4X4
|
Thread 1
1/4-18
|
Thread 2
7/16-20
|
Thread Sealant
No
|
Tube O.D.
0.25
|
Tube O.D.
0.25
|
Product Weight
0.07 lbs
|
