This brass adapter features a 1/8-27 Male NPT to 5/8-18 Male SAE 45 degree Flare connection, configured as a 90 degree elbow. It is suitable for LP and natural gas applications, as well as flammable liquids in special orders. This adapter can also be used in instrumentation, refrigeration, power steering, and hydraulic and pneumatic systems.

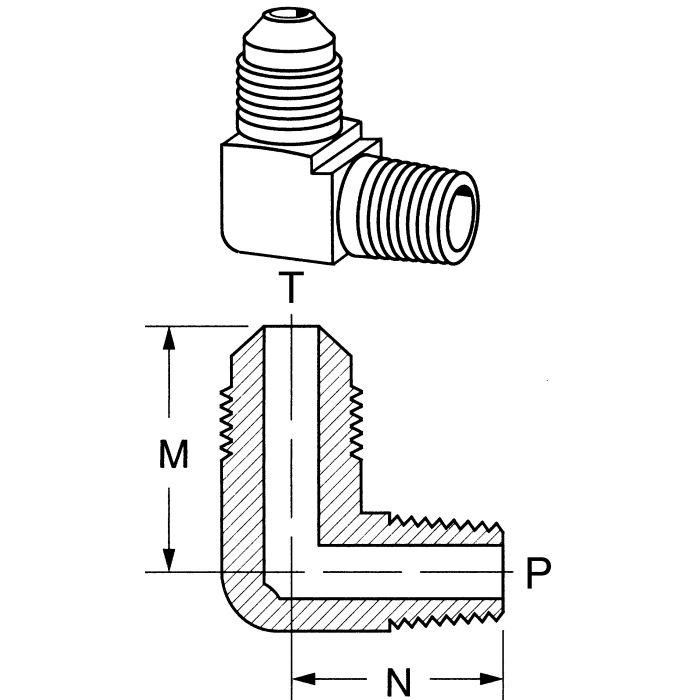

The Brass Adapter, 1/8-27 Male NPT To 5/8-18 Male SAE 45 deg Flare, 90 deg Elbow has a minimum working temperature of -65 degrees. Drop dimension is 0.9100, and M and N dimensions are 1.03 and 0.91 respectively.
SKU: IG49X6X2
Supplier Part Number (MPN): 49X6X2
|
Application
LP and natural gas,
flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems. |
Drop Dimension
0.91
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.13
|
End Size 2
0.63
|
End Type 1
NPTF
|
End Type 2
SAE
|
M
1.03
|
Minimum Working Temperature
-65
|
N
0.91
|
Supplier Part Number
49X6X2
|
Thread 1
1/8-27
|
Thread 2
5/8-18
|
Thread Sealant
No
|
Tube O.D.
0.38
|
Tube O.D.
0.375
|
Product Weight
0.12 lbs
|
