Brass Male Run Bsp Tee

Description & Features

Manufactured in brass, this tee fitting provides a male run configuration suitable for branching BSP threaded circuits in hydraulic and fluid power applications. The run ports connect via 1/8" BSPP female threads (G 1/8-28) on two sides, while the male branch port carries a 1/8" BSPT thread (R 1/8-28), accommodating both parallel and tapered BSP connections within a single fitting body.

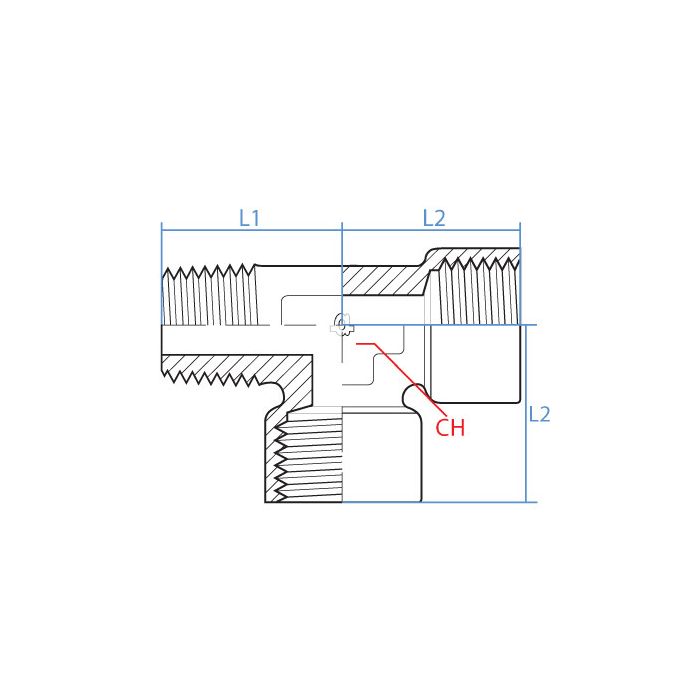

The Adaptall Brass Male Run Bsp Tee has a ch width of 12mm, with an L1 length of 18mm and an L2 length of 20mm, a compact form factor well suited to space-constrained installations. Brass construction offers reliable corrosion resistance and compatibility with a wide range of hydraulic fluids and pneumatic media commonly encountered in industrial environments.

SKU: 8095-02-02-02

Supplier Part Number (MPN): 8095-02-02-02

Specifications

CH Width 12mm	L1 Length 18mm	L2 Length 20mm	Adaptall Material Brass	Adaptall Shape Tee	Side 1 Callout R 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspt	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Side 3 Callout G 1/8 - 28	Side 3 Gender F	Side 3 Size 1/8"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8095-02-02-02	Product Weight 0.05 lbs

Product Questions & Answers (3)

Question by: Wayne D on May 10, 2025, 2:43 PM

Trying to tee off a 1/8 BSP line here. Are the two run ports G 1/8-28 female and the branch R 1/8-28 male on this fitting?

Answer by: Customer Support on May 11, 2025, 7:01 PM

For this tee, the straight-through run ports are both 1/8 inch BSPP female threads with a G 1/8-28 callout, and the branch is a 1/8 inch BSPT male thread with an R 1/8-28 callout. It is meant to let you mix parallel BSPP on the run with a tapered BSPT branch in one body.

Question by: Darryl C on Jul 13, 2025, 8:55 PM

What's the thread situation on this tee, like, which end screws into something and which ones accept fittings?

Answer by: Customer Support on Jul 15, 2025, 10:33 AM

The branch port, which sticks out from the side, has a 1/8" BSPT male thread. That's the tapered type, so it threads into a female BSPT or compatible port on your component. The two run ports on either end of the straight-through path are 1/8" BSPP female, meaning they accept male BSPP fittings coming in from your line. So you've got one male tapered outlet and two female parallel inlets all in one body.

Question by: Ross H on Sep 15, 2025, 12:15 PM

Is this here tee fitting made of real brass?

Answer by: Customer Support on Sep 17, 2025, 6:38 AM

The Adaptall Male Run BSP Tee is manufactured from brass, which provides good corrosion resistance.
