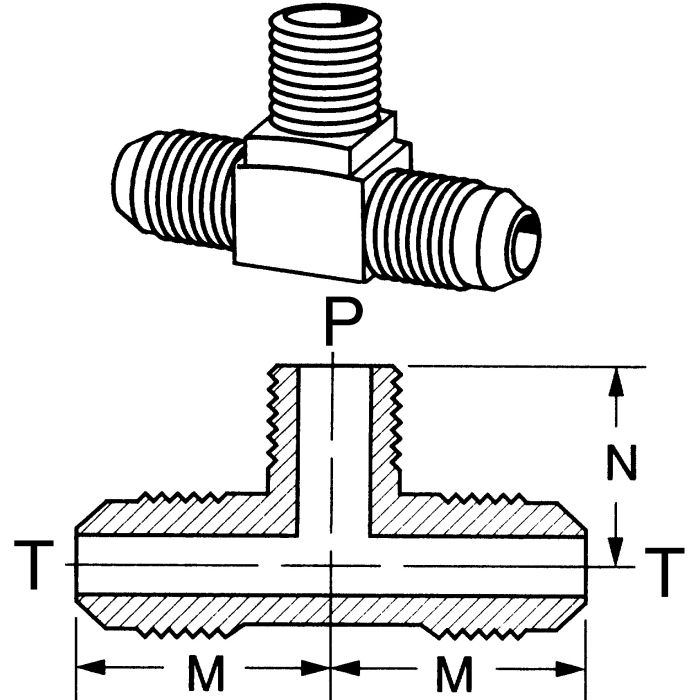

Brass Adapter, 7/16-20 Male SAE 45 deg Flare Run To 1/8-27 Male NPT Branch, Tee

Description & Features

This brass adapter features a 7/16-20 male SAE 45 deg flare run to 1/8-27 male NPT branch, configured as a tee. The fitting is part of the Pipe To 45° Flare Adapters product model line. With a minimum working temperature of -65 degrees, the Brass Adapter, 7/16-20 Male SAE 45 deg Flare Run To 1/8-27 Male NPT Branch, Tee is suitable for a range of industrial applications.

It has a thread size 1 of 1/8-27 and a thread size 2 of 7/16-20. End 1 and End 2 are male SAE 45 connections with a size of 0.4375, while End 3 is a male connection with a size of 0.125.

SKU: IG45X4

Supplier Part Number (MPN): 45X4

Specifications

End Gender 1 13554	End Gender 2 13556	End Gender 3 13558	End Size 1 0.44	End Size 2 0.44	End Size 3 0.13	End Type 1 SAE 45	End Type 2 SAE 45	M 0.81	Minimum Working Temperature -65	N 0.78	Supplier Part Number 45X4	Thread 1 1/8-27	Thread 2 7/16-20	Thread Sealant No	Tube O.D. 0.25	Tube O.D. 0.25	Product Weight 0.07 lbs

Product Questions & Answers (1)

Question by: Daryl S on Nov 7, 2025, 8:35 PM

Is this tee fitting good for hooking up a pressure gauge?

Answer by: Customer Support on Nov 9, 2025, 10:31 AM

This brass adapter is configured as a tee, with a 7/16-20 male SAE 45 deg flare run to 1/8-27 male NPT branch, which makes it suitable for connecting pressure gauges or other instruments.
