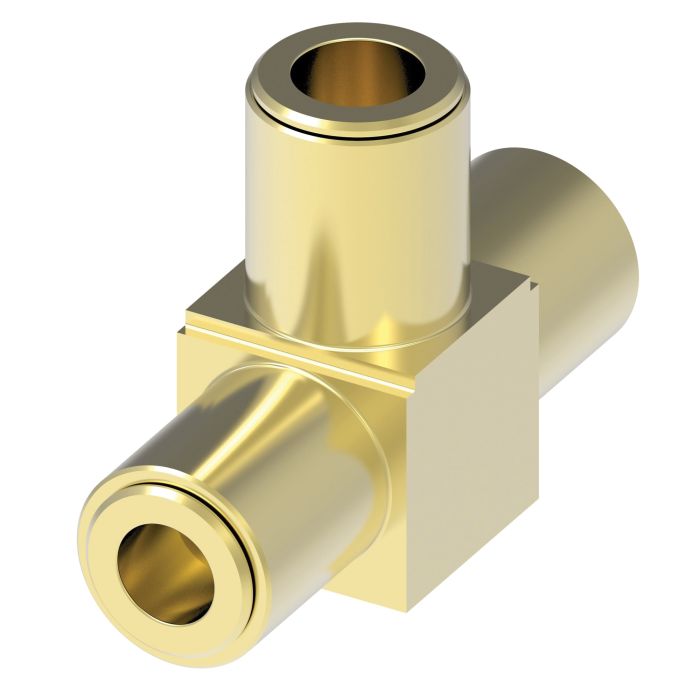

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD Union Tee

Designed for a 0.375 inch tube outer diameter this high-quality fitting ensures seamless connection with an easy fast assembly process. It meets D.O.T. FMVSS 571.106 and SAE J1131 standards guaranteeing conformance with stringent air brake system performance requirements.

Constructed from CA360 brass for the body and collet and featuring an EP (ethylene propylene) O-ring this fitting is built for durability and moderate vibration resistance. It operates effectively in a broad temperature range from -40F to +200F and supports a pressure range from vacuum to 150 psi.

The one-piece fitting is reusable and field serviceable making it an excellent choice for various industry-specific applications. Assembly is straightforward: insert tubing ensure a solid stop and the tubing grip and seal is achieved.

For disassembly depress the collet head using fingers or a release tool and pull the tubing from the fitting. This model supports efficient secure connections in demanding environments.

Supplier Part Number: 1864X6
