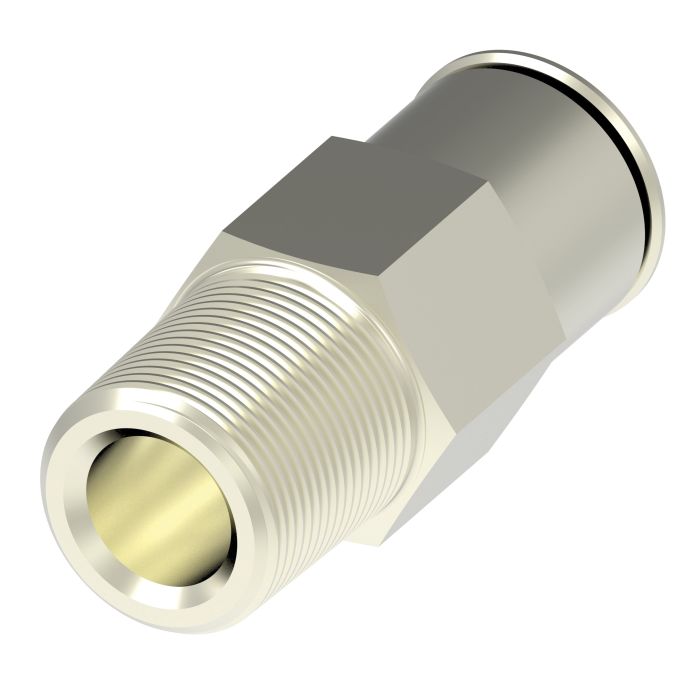

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD To 1/8-27 Male NPT, Straight

Ask A Question

Description & Features

Manufactured from high-quality brass and nickel-plated for durability.

This component is ideal for compressed pneumatic instrumentation lubricant circuit and cooling lines. Featuring an O-Ring of Buna-N construction with optional Viton seals available upon special request.

Compatible with PT230 and TP160 nylon and PT240 polyethylene tubing. The fitting offers a temperature range of -40F to 200F and a maximum pressure rating of 250 psi ensuring reliable performance within specified conditions.

Designed for ease of assembly without the need for tools. These fittings are reusable providing significant time savings during both assembly and disassembly.

To connect simply push the tubing into the fitting. To disconnect depress the collet ring with two fingers and withdraw.

**MPN:** C1HY48 **Supplier Part Number:** 1168X5

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
L
1.14
Supplier Part Number
1168X5
Thread 1
1/8-27
Tube O.D.
0.31
Tube O.D.
0.3125
Alternate Part Numbers
Alternate Part Number C1HY48, Alternate Part Number MI-00293688, Alternate Part Number MINO-00925F41470
Product Weight
0.04 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 L Price Action
Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD To 1/8-27 Male NPT, Straight

1168X2 Brass Push>Connect NPT Fitting

0.125

1/8-27

0.85

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 1/8-27 Male NPT, Straight

1168X2.5 Brass Push>Connect NPT Fitting

0.1563

1/8-27

0.81

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 10-32 UNF thread Male NPT, Straight

1168X2.5A Brass Push>Connect NPT Fitting

0.1563

10-32 UNF thread

0.81

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 1/4-18 Male NPT, Straight

1168X2.5X4 Brass Push>Connect NPT Fitting

0.1563

1/4-18

0.94

Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD To 10-32 UNF thread Male NPT, Straight

1168X2A Brass Push>Connect NPT Fitting

0.125

10-32 UNF thread

0.85

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, Straight

1168X4 Brass Push>Connect NPT Fitting

0.25

1/8-27

0.98

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 10-32 UNF thread Male NPT, Straight

1168X4A Brass Push>Connect NPT Fitting

0.25

10-32 UNF thread

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, Straight

1168X4X4 Brass Push>Connect NPT Fitting

0.25

1/4-18

1.08

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT, Straight

1168X4X6 Brass Push>Connect NPT Fitting

0.25

3/8-18

1.1

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD To 1/8-27 Male NPT, Straight

1168X5 Brass Push>Connect NPT Fitting

0.3125

1/8-27

1.14

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD To 1/4-18 Male NPT, Straight

1168X5X4 Brass Push>Connect NPT Fitting

0.3125

1/4-18

1.14

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, Straight

1168X6 Brass Push>Connect NPT Fitting

0.375

1/4-18

1.38

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, Straight

1168X6X2 Brass Push>Connect NPT Fitting

0.375

1/8-27

1.38

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, Straight

1168X6X6 Brass Push>Connect NPT Fitting

0.375

3/8-18

1.18

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, Straight

1168X8 Brass Push>Connect NPT Fitting

0.5

3/8-18

1.36

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, Straight

1168X8X8 Brass Push>Connect NPT Fitting

0.5

1/2-14

1.36

Product Questions & Answers (3)

Question by: Tammy B on Feb 24, 2026, 3:01 PM
What kind of tubing works best with this fitting, like nylon or polyethylene?
Answer by: Customer Support on Feb 26, 2026, 6:41 AM
This fitting is designed to work well with PT230 and TP160 nylon tubing, as well as PT240 polyethylene tubing.
Question by: Bobby C on Oct 26, 2025, 8:12 AM
fitting says it works with PT230 and PT240 tubing -- does that cover polyethylene or just the nylon stuff?
Answer by: Customer Support on Oct 28, 2025, 7:11 AM
Both, actually. PT230 and PT160 are nylon tubing, and PT240 is polyethylene. All three are listed as compatible with this fitting, so whichever of those you're running, you're covered without any adapter changes.
Question by: Ralph S on Jan 29, 2026, 7:05 AM
got some 5/16 tube already, will this fitting grab it or is it some oddball size
Answer by: Customer Support on Jan 30, 2026, 7:47 AM
For sizing, it’s made for 0.31 inch tube OD, which is the same as 5/16 inch tubing. It’s a straight push to connect style fitting and it’s listed as compatible with PT230 and TP160 nylon and PT240 polyethylene tubing.
