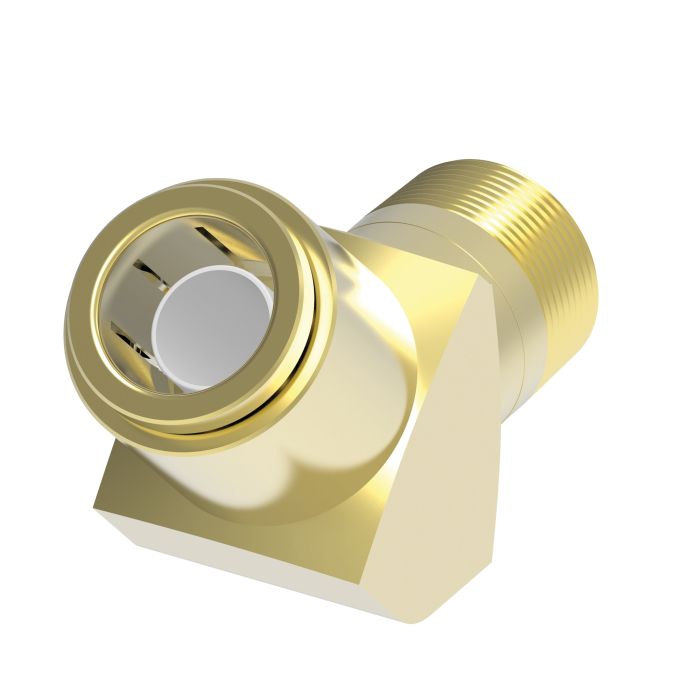

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, 45 deg Elbow

Ask A Question

Description & Features

Brass Push>Connect Air Brake Tube Fitting 0.38 Inch Tube OD To 1/8-27 Male NPT 45 deg Elbow is designed for efficient and reliable air brake systems.

Constructed from CA360 brass for durability the fitting offers easy fast assembly and is reusable for field service. It meets D.O.T. FMVSS 571.106 and SAE J1131 air brake performance requirements.

Featuring a one-piece design it supports a pressure range from vacuum to 150 psi and a temperature range of -40F to +200F.

Moderate vibration resistance ensures stability during usage. The EP O-ring provides an effective seal preventing leaks.

Supplier Part Number: 1880X6X2

MPN: EAR99

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
M
1.05
N
0.48
Supplier Part Number
1880X6X2
Thread 1
1/8-27
Tube O.D.
0.38
Tube O.D.
0.375
Alternate Part Numbers
Alternate Part Number C1HN48, Alternate Part Number MI-08703244, Alternate Part Number MINO-00015X03682, Alternate Part Number MINO-00925X88652
Product Weight
0.18 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 M N Price Action
Brass Push>Connect Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 45 deg Elbow

1880X10 Brass Push>Connect To Male NPT 45 Elbow

0.625

1/2-14

1.39

0.9

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 45 deg Elbow

1880X4 Brass Push>Connect To Male NPT 45 Elbow

0.25

1/8-27

0.95

0.59

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 45 deg Elbow

1880X6 Brass Push>Connect To Male NPT 45 Elbow

0.375

1/4-18

1.05

0.69

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, 45 deg Elbow

1880X6X2 Brass Push>Connect To Male NPT 45 Elbow

0.375

1/8-27

1.05

0.48

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 45 deg Elbow

1880X6X6 Brass Push>Connect To Male NPT 45 Elbow

0.375

3/8-18

1.1

0.63

Product Questions & Answers (1)

Question by: Vince H on Aug 14, 2025, 12:25 PM
fitting says it goes up to 150 psi -- is that enough for a standard air brake system or do I need something rated higher?
Answer by: Customer Support on Aug 15, 2025, 2:48 PM
For most air brake applications, 150 psi is right in the working range. Air brake systems typically operate well below that ceiling, so this fitting covers what you'd expect to see in normal service. It also meets D.O.T. FMVSS 571.106 and SAE J1131 requirements, which are the recognized performance standards for air brake fittings, so it's not just a pressure number on paper.
