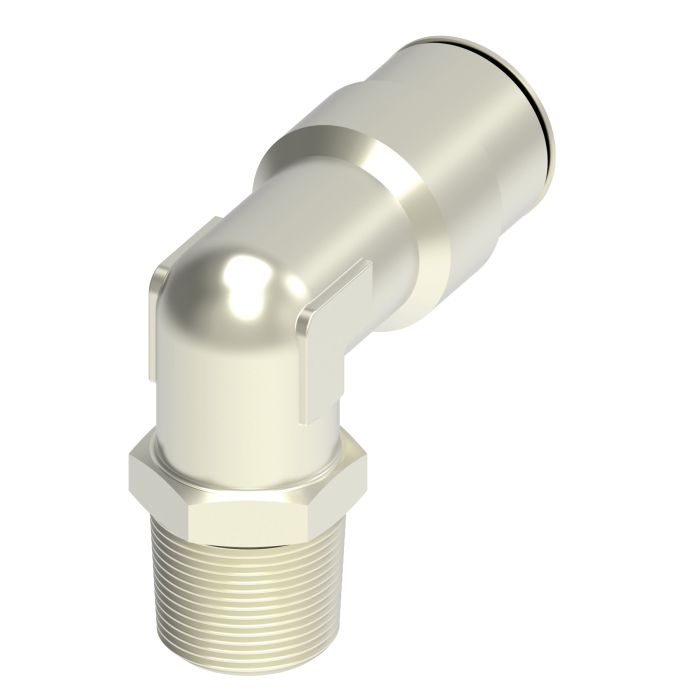

main product photo

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

Ask A Question

Description & Features

Crafted for durability this fitting is ideal for compressed pneumatic instrumentation circuit lubricant and cooling lines. Constructed from nickel-plated brass it ensures long-lasting performance along with robust o-ring seals of Buna-N construction for reliable use. The assembly and disassembly are facilitated without the need for tools offering significant time savings and reusability of fittings.

Segment Code: seg_code_a

Supplier Part Number: 1169X2.5S

Product Model Label: Push Connect Brass Tube Fittings

Meta Title: Danfoss Power Solutions (Aeroquip Inc-Alternate) Brass Push>Connect To Male NPT 90 Elbow 1169X2.5S

This fitting is specifically designed to withstand pressures up to 250 psi depending on the tube size and is vacuum rated at 29.5 inches of mercury. It works optimally within a temperature range of -40F to 200F. For ease of use connect the tubing by simply pushing it into the fitting; to disconnect depress the collet ring with two fingers and withdraw. The product is compatible with PT230 and TP160 nylon and PT240 polyethylene tubing. Ensure to consider the tubing's temperature range when using to maintain optimal performance.

Specifications

E
0.71
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
0.39
M
0.79
Supplier Part Number
1169X2.5S
Thread 1
1/8-27
Tube O.D.
0.16
Tube O.D.
0.1563
Alternate Part Numbers
Alternate Part Number C1HM31, Alternate Part Number MI-00294045, Alternate Part Number MINO-00925F41727
Product Weight
0.04 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 E F M Price Action
Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 10-32 UNF thread Male NPT Swivel, 90 deg Elbow

1169X2.5AS Brass Push>Connect To Male NPT 90 Elbow

0.1563

10-32 UNF thread

0.53

0.39

0.79

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2.5S Brass Push>Connect To Male NPT 90 Elbow

0.1563

1/8-27

0.71

0.39

0.79

Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2S Brass Push>Connect To Male NPT 90 Elbow

0.125

1/8-27

0.71

0.39

0.83

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/8-27

0.73

0.5

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.81

0.5

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.87

0.5

0.93

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X5S Brass Push>Connect To Male NPT 90 Elbow

0.3125

1/8-27

0.77

0.59

0.98

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/4-18

0.89

0.69

1.12

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

0.75

0.64

1.1

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X6X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

3/8-18

0.91

0.69

1.12

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

3/8-18

0.95

0.77

1.22

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X8X4S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/4-18

0.95

0.77

1.22

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT Swivel, 90 deg Elbow

1169X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.12

0.77

1.22

Product Questions & Answers (3)

Question by: Lee R on Jun 26, 2025, 12:05 PM
pushing tubing in is easy enough, but how do you actually get it back out when you need to swap something? do you need any tools for that?
Answer by: Customer Support on Jun 27, 2025, 4:40 PM
No tools needed for either end of the job. To release the tubing, press the collet ring inward with two fingers and pull the tube straight out while holding that pressure. The fitting is fully reusable, so swapping lines out in the field is pretty straightforward once you get the feel for it.
Question by: Ronnie M on May 19, 2025, 9:18 AM
What kind of pressure can this little elbow handle?
Answer by: Customer Support on May 21, 2025, 6:38 AM
This fitting can handle pressures up to 250 psi, but it depends on the size of the tubing you're using with it. It's also vacuum rated at 29.5 inches of mercury.
Question by: Todd A on Feb 14, 2026, 2:50 PM
got some 0.16" OD nylon tube, does it just push in and lock or do i need any tools to make it seal
Answer by: Customer Support on Feb 16, 2026, 9:24 AM
For hookup, you just push the tubing into the fitting until it seats. It uses a Buna-N o-ring seal and it is made for tool-free assembly. To remove the tube later, press the collet ring in with two fingers and pull the tubing back out.
