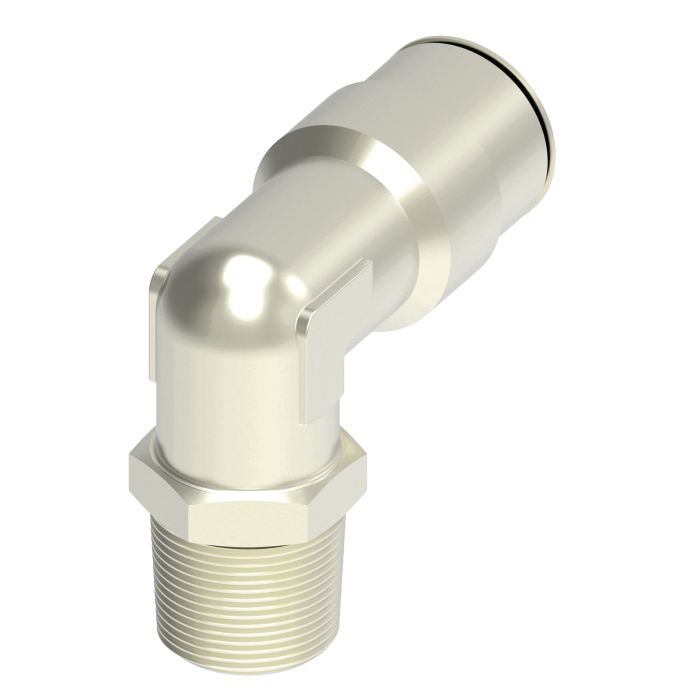

main product photo

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

Ask A Question

Description & Features

The Danfoss / Eaton Push>Connect Swivel Elbow Adapter is expertly designed for use with compressed pneumatic instrumentation circuit lubricant and cooling lines. This fitting enables seamless assembly without the need for tools and allows for easy reusability significantly reducing assembly and disassembly time. Made from durable brass and nickel-plated materials this fitting includes a Buna-N O-Ring seal with Viton available upon request. It is suited for PT230 and TP160 nylon and PT240 polyethylene tubing and supports a pressure range of up to 250 psi dependent on tubing size. The fittings can operate effectively within a temperature range of -40F to 200F provided the tubing temperature range is observed. The fitting is rated at 29.5 inches of mercury vacuum ensuring reliable performance in demanding applications. To connect simply push the tubing into the fitting and to disconnect depress the collet ring with two fingers and withdraw. Supplier Part Number: 1169X6S

Specifications

E
0.89
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
0.69
M
1.12
Supplier Part Number
1169X6S
Thread 1
1/4-18
Tube O.D.
0.38
Tube O.D.
0.375
Alternate Part Numbers
Alternate Part Number C1HM43, Alternate Part Number MI-00294160, Alternate Part Number MINO-00925F41822
Product Weight
0.09 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 E F M Price Action
Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 10-32 UNF thread Male NPT Swivel, 90 deg Elbow

1169X2.5AS Brass Push>Connect To Male NPT 90 Elbow

0.1563

10-32 UNF thread

0.53

0.39

0.79

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2.5S Brass Push>Connect To Male NPT 90 Elbow

0.1563

1/8-27

0.71

0.39

0.79

Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2S Brass Push>Connect To Male NPT 90 Elbow

0.125

1/8-27

0.71

0.39

0.83

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/8-27

0.73

0.5

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.81

0.5

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.87

0.5

0.93

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X5S Brass Push>Connect To Male NPT 90 Elbow

0.3125

1/8-27

0.77

0.59

0.98

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/4-18

0.89

0.69

1.12

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

0.75

0.64

1.1

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X6X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

3/8-18

0.91

0.69

1.12

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

3/8-18

0.95

0.77

1.22

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X8X4S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/4-18

0.95

0.77

1.22

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT Swivel, 90 deg Elbow

1169X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.12

0.77

1.22

Product Questions & Answers (1)

Question by: Hank B on Sep 8, 2025, 12:20 PM
fitting says it goes up to 250 psi but does that hold true no matter what size tubing your running with it?
Answer by: Customer Support on Sep 9, 2025, 4:18 PM
Pressure rating on these push-connect fittings is tubing-dependent, so 250 psi is the ceiling, not a flat guarantee across every tube size. Smaller diameter tubing tends to support higher working pressures while larger sizes may come in lower. Run your specific tubing size against the published rating chart for that configuration before committing to it in a higher-pressure circuit.
