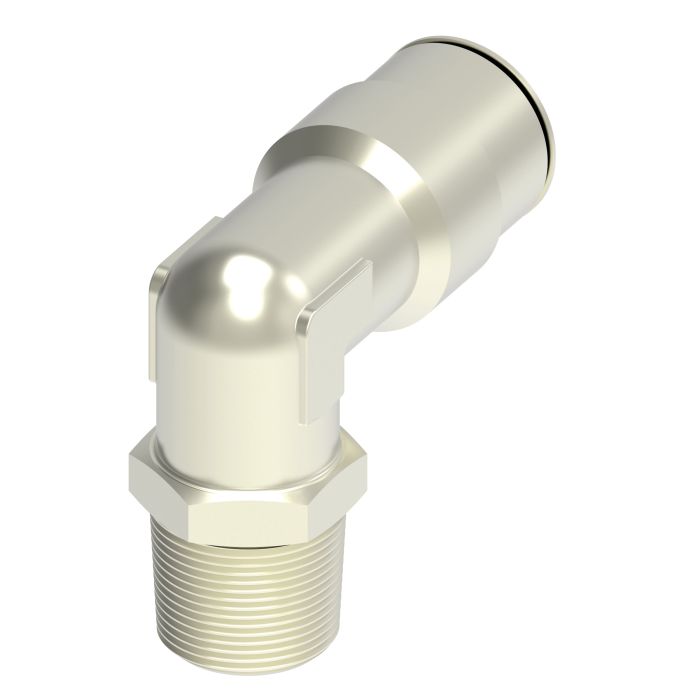

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

Ask A Question

Description & Features

This Danfoss Power Solutions (Aeroquip Inc-Alternate) Brass Push>Connect Tube Fitting is tailored for demanding applications in compressed pneumatic instrumentation circuit lubricant and cooling lines. Featuring a 90-degree elbow design it facilitates seamless transitions between a 0.38-inch tube OD and 3/8-18 Male NPT Swivel.

Constructed from high-quality brass with nickel plating it offers robust performance and durability. The fitting is equipped with Buna-N O-rings ensuring a secure seal; Viton O-rings are available upon request. With a pressure range up to 250 psi it is well-suited for various industrial uses.

Designed for ease of assembly and reusability this fitting allows quick and tool-free connections and disconnections. Its operational temperature range spans from -40F to 200F. Note that the temperature range of compatible plastic tubing should also be considered to prevent exceeding limits.

Compatible with PT230 and TP160 nylon and PT240 polyethylene tubing it meets the industrial standards for safety and reliability. For optimal use ensure correct assembly by pushing the tubing into the fitting and to disconnect depress the collet ring with two fingers and withdraw.

MPN: C1JB97

Supplier Part Number: 1169X6X6S

Specifications

E
0.91
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
0.69
M
1.12
Supplier Part Number
1169X6X6S
Thread 1
3/8-18
Tube O.D.
0.38
Tube O.D.
0.375
Alternate Part Numbers
Alternate Part Number C1JB97, Alternate Part Number MI-00294169, Alternate Part Number MINO-00015X02522, Alternate Part Number MINO-00925F41824
Product Weight
0.12 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 E F M Price Action
Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 10-32 UNF thread Male NPT Swivel, 90 deg Elbow

1169X2.5AS Brass Push>Connect To Male NPT 90 Elbow

0.1563

10-32 UNF thread

0.53

0.39

0.79

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2.5S Brass Push>Connect To Male NPT 90 Elbow

0.1563

1/8-27

0.71

0.39

0.79

Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2S Brass Push>Connect To Male NPT 90 Elbow

0.125

1/8-27

0.71

0.39

0.83

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/8-27

0.73

0.5

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.81

0.5

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.87

0.5

0.93

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X5S Brass Push>Connect To Male NPT 90 Elbow

0.3125

1/8-27

0.77

0.59

0.98

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/4-18

0.89

0.69

1.12

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

0.75

0.64

1.1

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X6X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

3/8-18

0.91

0.69

1.12

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

3/8-18

0.95

0.77

1.22

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X8X4S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/4-18

0.95

0.77

1.22

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT Swivel, 90 deg Elbow

1169X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.12

0.77

1.22

Product Questions & Answers (1)

Question by: Lyle G on Feb 13, 2026, 8:24 AM
got a 3/8 OD nylon tube and need to swing into a 3/8-18 male NPT port at a right angle. is that what this elbow is set up for
Answer by: Customer Support on Feb 14, 2026, 9:05 PM
For a right angle changeover, it connects 0.38 inch tube OD on the push to connect side to a 3/8-18 male NPT swivel on the other end, using a 90 degree elbow body.
