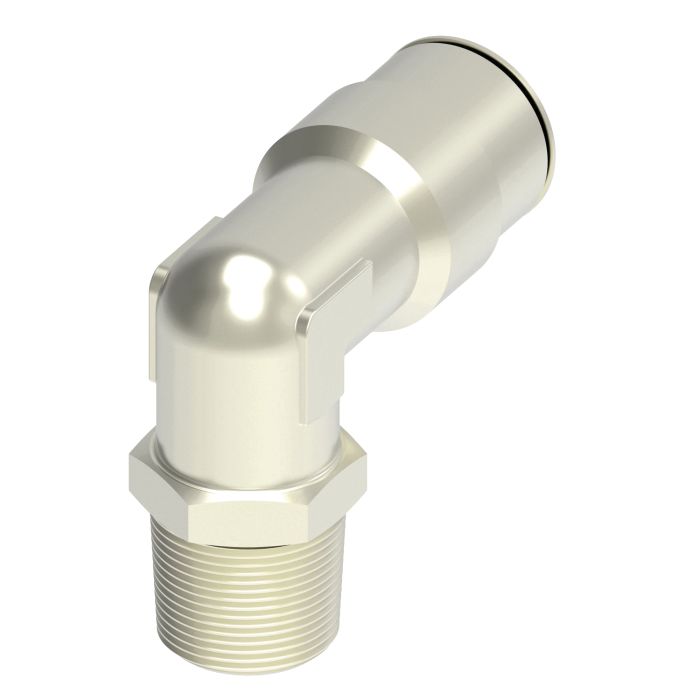

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

Ask A Question

Description & Features

The Danfoss / Eaton Push>Connect Swivel Elbow Adapter is engineered for compressed pneumatic instrumentation circuit lubricant and cooling lines. Designed with a 0.50-inch tube outer diameter to 3/8-18 male NPT swivel this 90-degree brass elbow fitting ensures efficient and reliable connections.

Constructed from brass with nickel plating it offers a temperature range from -40F to 200F and an impressive pressure capacity up to 250 psi dependent on tube size.

The fitting features a convenient push-connect mechanism which allows for tool-free assembly and disassembly emphasizing ease of use and reusability.

It is compatible with PT230 and TP160 nylon as well as PT240 polyethylene tubing. For sealing the adapter incorporates Buna-N o-rings with optional Viton seals available upon request.

Supplier Part Number: 1169X8S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
MNPT Swivel, Push-Fit
Connection Type 1
Female Push-to-Connect
Connection Type 2
MNPTF Swivel
e Dimensions
0.95 in
f Dimensions
0.77 in
Finish
Nickel-Plated
Fitting Type
90 deg Elbow
For Use With
PT230, TP160 Nylon Tubing and PT240 Polyethylene Tubing
Hex Size
3/4 in
m Dimensions
1.22 in
Material
Brass
Material Construction
Brass
Series
1169X Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18
Tube OD
1/2 in

Similar Products

Model Number Tube O.D. Thread Size e Dimensions f Dimensions M Price Action
Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 10-32 UNF thread Male NPT Swivel, 90 deg Elbow

1169X2.5AS Brass Push>Connect To Male NPT 90 Elbow

0.1563

10-32

0.53 in

0.39 in

0.79

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2.5S Brass Push>Connect To Male NPT 90 Elbow

0.1563

1/8-27

0.71 in

0.39 in

0.79

Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X2S Brass Push>Connect To Male NPT 90 Elbow

0.125

1/8-27

0.71 in

0.39 in

0.83

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/8-27

0.73 in

1/2 in

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.81 in

1/2 in

0.91

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.87 in

1/2 in

0.93

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X5S Brass Push>Connect To Male NPT 90 Elbow

0.3125

1/8-27

0.77 in

0.59 in

0.98

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/4-18

0.89 in

0.69 in

1.12

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT Swivel, 90 deg Elbow

1169X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

3/4 in

0.64 in

1.1

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT Swivel, 90 deg Elbow

1169X6X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

3/8-18

0.91 in

0.69 in

1.12

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/4-18 Male NPT Swivel, 90 deg Elbow

1169X8X4S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/4-18

0.95 in

0.77 in

1.22

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT Swivel, 90 deg Elbow

1169X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.12 in

0.77 in

1.22

Product Questions & Answers (1)

Question by: Roy R on Mar 10, 2026, 9:58 AM
trying to hook 1/2 inch tubing into a 3/8-18 male npt port with a 90, is that what this elbow is set up for?
Answer by: Customer Support on Mar 11, 2026, 7:25 PM
It matches 0.50 inch tube OD on the push-connect side and a 3/8-18 male NPT swivel on the threaded side, with a 90 degree elbow body to turn the line.
