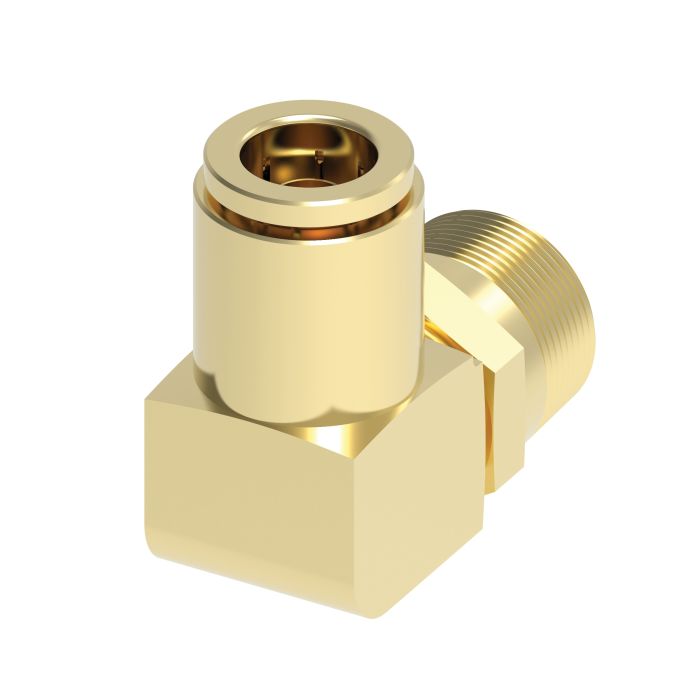

main product photo

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

The Brass Push>Connect Air Brake Tube Fitting designed for performance features a swivel elbow adapter with a 0.25-inch tube OD and 1/8-27 male NPT threading. This robust fitting ensures secure and reliable connections in air brake systems meeting D.O.T. FMVSS 571.106 and SAE J1131 standards.

Constructed from CA360 brass with an EP O-ring it supports a pressure range from vacuum to 150 psi and temperatures between -40F to +200F. Its easy fast assembly process and reusable field-serviceable design make it a highly efficient choice for industrial applications. Moderate vibration resistance further enhances its suitability for demanding environments.

Segment Code: seg_code_a

Supplier Part Number: 1869X4S

Follow assembly instructions for optimal performance; cut tubing squarely insert until a solid stop is felt and gently tug to secure. To disassemble ensure no air pressure depress the collet head and pull the tubing out.

MPN: EAR99

Specifications

Brand
Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
MNPT Swivel, Tube
Connection Type 1
Tube
Connection Type 2
Male NPTF Swivel
Dimension Standards
SAE AA0302
Fitting Type
90 deg Elbow
For Use With
Nylon Air Brake Tubing
Hex Size
7/16 in
m Dimensions
0.89 in
Material
Brass
Material Construction
Brass
n Dimensions
0.88 in
Series
1869X Series
Thread Sealant
Without Thread Sealant
Thread Size
1/8-27
Tube OD
1/4 in

Similar Products

Model Number Tube O.D. Thread Size M N Price Action
Brass Push>Connect Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X10S Brass Push>Connect To Male NPT 90 Elbow

0.625

1/2-14

1.38

1.54

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.99

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.98

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/4-18

1.1

1.14

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

1.03

0.97

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X6X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

3/8-18

1.12

1.15

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X6X8S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/2-14

1.18

1.4

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

3/8-18

1.13

1.27

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.2

1.47

Product Questions & Answers (1)

Question by: Billy S on Dec 8, 2025, 7:40 AM
fitting says it goes up to 150 psi, is that enough for a standard air brake setup or should I be looking at something heavier duty?
Answer by: Customer Support on Dec 9, 2025, 7:57 AM
For typical air brake systems, 150 psi covers the working range you'd expect to see. These systems generally operate well below that ceiling, so this fitting holds up fine under normal conditions. It's also rated down to full vacuum on the low end, which means it handles the full pressure swing an air brake circuit sees during regular operation.
