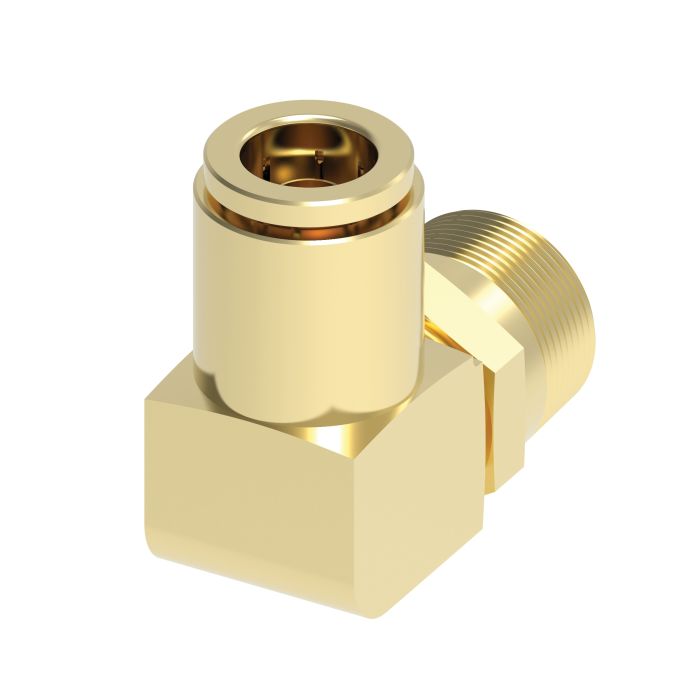

main product photo

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

Engineered for reliability these Quick Connect brass air brake tube fittings offer a seamless connection for air brake systems. Suitable for various commercial and industrial transportation applications they conform to D.O.T. FMVSS 571.106 and SAE J1131 air brake system requirements.

Constructed with CA360 brass body and collet along with an EP (Ethylene Propylene) O-ring the fittings ensure durability and effective sealing. The thread size is 1/4-18 Male NPT paired with a tube outside diameter of 0.375 inches set in a 90-degree elbow design.

The fittings support a pressure range from vacuum up to 150 psi and a temperature range of -40F to +200F. Assembly is straightforward and quick without the need for additional tools. They provide moderate vibration resistance making them versatile for various braking systems.

Disassembly is just as simple requiring only depressing the collet head to release the grip on tubing ensuring easy field service and reuse.

ECCN: EAR99

Supplier Part Number: 1869X6S

Specifications

Brand
Danfoss
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
MNPT Swivel, Tube
Connection Type 1
Tube
Connection Type 2
Male NPTF Swivel
Dimension Standards
SAE AA02DD
Fitting Type
90 deg Elbow
For Use With
Nylon Air Brake Tubing
Hex Size
0.563 in
m Dimensions
1.1 in
Material
Brass
Material Construction
Brass
n Dimensions
1.14 in
Series
1869X Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-18
Tube OD
3/8 in

Similar Products

Model Number Tube O.D. Thread Size M N Price Action
Brass Push>Connect Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X10S Brass Push>Connect To Male NPT 90 Elbow

0.625

1/2-14

1.38

1.54

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/8-27

0.89

0.88

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.99

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.98

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

1.03

0.97

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X6X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

3/8-18

1.12

1.15

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X6X8S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/2-14

1.18

1.4

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

3/8-18

1.13

1.27

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.2

1.47

Product Questions & Answers (1)

Question by: Vince S on Aug 9, 2025, 7:16 PM
trying to swap out an old elbow on my air brake line. is this one for 3/8 tube to a 1/4-18 male npt?
Answer by: Customer Support on Aug 11, 2025, 6:09 AM
It matches a 0.375 inch (3/8) tube OD on the push-to-connect side and a 1/4-18 male NPT thread on the other side, in a 90 degree elbow.
