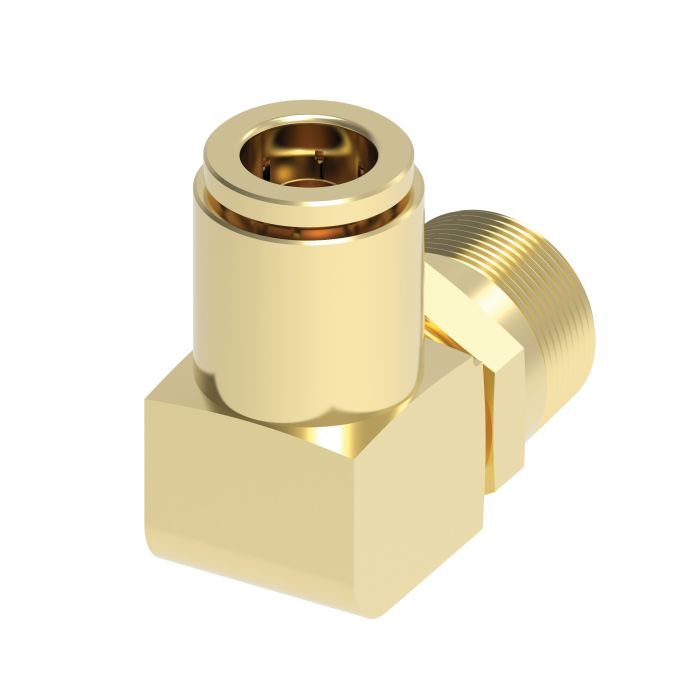

main product photo

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

This Brass Push>Connect Air Brake Tube Fitting from Danfoss Power Solutions is designed for efficient and secure connections. The fitting features a 90-degree elbow with a 0.38 inch tube OD and 3/8-18 male NPT thread. Manufactured from CA360 brass it offers robust durability and reliability.

Engineered to meet D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance standards this fitting ensures compliance and high performance in demanding applications. The one-piece fitting is reusable and field serviceable making it an economical solution for various industrial needs.

The fitting supports a pressure range from vacuum to 150 psi and operates effectively within a temperature range of -40F to +200F. Featuring moderate vibration resistance it is suitable for environments with varying operational demands. The Ethylene Propylene (EP) O-ring enhances the sealing integrity while maintaining ease of assembly and disassembly.

MPN: 1869X6X6S

Supplier Part Number: 1869X6X6S

Specifications

Brand
Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
MNPT Swivel, Tube
Connection Type 1
Tube
Connection Type 2
Male NPTF Swivel
Dimension Standards
SAE AA02DD
Fitting Type
90 deg Elbow
For Use With
Nylon Air Brake Tubing
Hex Size
11/16 in
m Dimensions
1.12 in
Material
Brass
Material Construction
Brass
n Dimensions
1.15 in
Series
1869X Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18
Tube OD
3/8 in

Similar Products

Model Number Tube O.D. Thread Size M N Price Action
Brass Push>Connect Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X10S Brass Push>Connect To Male NPT 90 Elbow

0.625

1/2-14

1.38

1.54

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/8-27

0.89

0.88

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.99

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.98

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/4-18

1.1

1.14

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

1.03

0.97

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X6X8S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/2-14

1.18

1.4

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

3/8-18

1.13

1.27

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.2

1.47

Product Questions & Answers (2)

Question by: Darryl M on Dec 27, 2025, 3:46 PM
fitting says it goes up to 150 psi, is that enough for a standard air brake setup, or do I need something rated higher?
Answer by: Customer Support on Dec 29, 2025, 1:32 PM
For most air brake systems, 150 psi covers standard operating pressure with room to spare. This fitting is rated from full vacuum up to 150 psi, so it lines up well with typical air brake circuit demands. It also meets D.O.T. FMVSS 571.106 and SAE J1131 standards, which are the benchmarks for air brake system performance, so you're not working outside of spec on a compliant system.
Question by: Freddie Y on Jan 30, 2026, 8:57 AM
got a tight spot on an air brake line. is this the kind of fitting that lets you turn the tube 90 degrees and still go into a 3/8-18 npt port?
Answer by: Customer Support on Jan 31, 2026, 6:27 PM
For a right angle turn into a threaded port, it matches that setup. One end is push to connect for 0.38 inch tube OD, and the other end is a 3/8-18 male NPT thread in a 90 degree elbow body.
