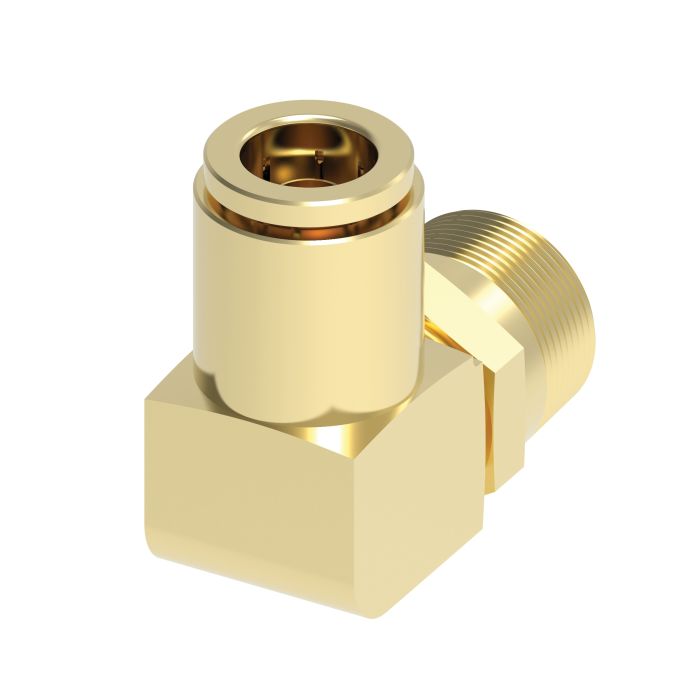

main product photo

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

The versatile Danfoss / Eaton Push>Connect Swivel Elbow Adapter ensures reliable connections in your air brake systems. Constructed from CA360 brass for the body and collet with an Ethylene Propylene (EP) O-ring this fitting offers robust performance.

Designed to withstand a pressure range from vacuum to 150 psi and a temperature range between -40F to +200F it meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance standards. This one-piece fitting is reusable and field serviceable facilitating easy and quick assembly with no special tools required.

The Brass Push>Connect Air Brake Tube Fitting 0.38 Inch Tube OD To 1/2-14 Male NPT 90 deg Elbow features a 1/2-14 thread and a 0.375-inch tube outer diameter providing a snug and secure connection. Suitable for moderate vibration environments this fitting enhances the dependability of your air brake assemblies.

Brand: Danfoss Power Solutions (Aeroquip Inc-Alternate)

Catalog Number: C1HN35

UNSPSC: 40183100

Conformance: Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
M
1.18
N
1.40
Supplier Part Number
1869X6X8S
Thread 1
1/2-14
Tube O.D.
0.38
Tube O.D.
0.375
Alternate Part Numbers
Alternate Part Number C1HN35, Alternate Part Number MI-08703222, Alternate Part Number MINO-00015X03625, Alternate Part Number MINO-00925X88645
Product Weight
0.20 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 M N Price Action
Brass Push>Connect Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X10S Brass Push>Connect To Male NPT 90 Elbow

0.625

1/2-14

1.38

1.54

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/8-27

0.89

0.88

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X4X4S Brass Push>Connect To Male NPT 90 Elbow

0.25

1/4-18

0.99

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X4X6S Brass Push>Connect To Male NPT 90 Elbow

0.25

3/8-18

0.98

1.06

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/4-18

1.1

1.14

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X6X2S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/8-27

1.03

0.97

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X6X6S Brass Push>Connect To Male NPT 90 Elbow

0.375

3/8-18

1.12

1.15

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X6X8S Brass Push>Connect To Male NPT 90 Elbow

0.375

1/2-14

1.18

1.4

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

3/8-18

1.13

1.27

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X8X8S Brass Push>Connect To Male NPT 90 Elbow

0.5

1/2-14

1.2

1.47

Product Questions & Answers (1)

Question by: Floyd C on Dec 20, 2025, 9:50 PM
got 3/8 air brake tube and need to turn a corner into a 1/2-14 npt port, is this the right elbow?
Answer by: Customer Support on Dec 22, 2025, 7:54 PM
For that setup, it matches. The tube side is for 0.375 inch (3/8) tube OD, and the threaded side is 1/2-14 male NPT in a 90 degree swivel elbow style.
