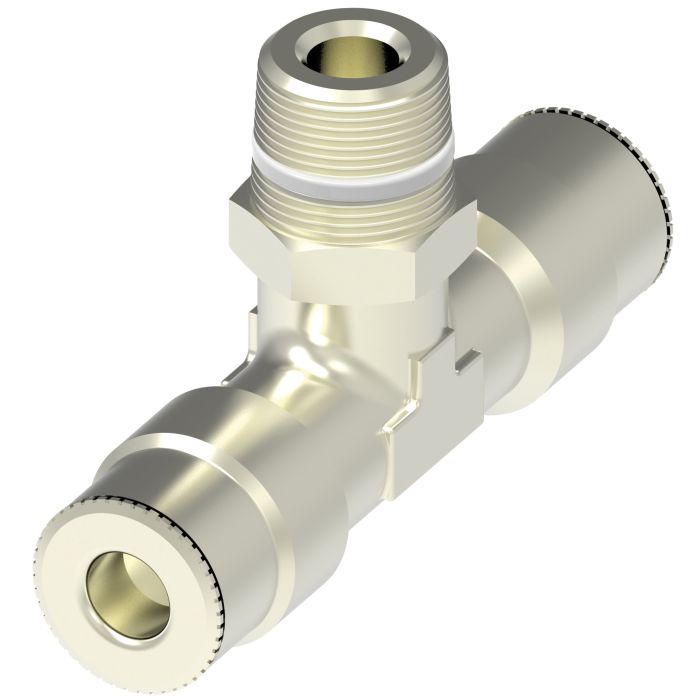

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD Run To 1/4-18 Male NPT Swivel Branch, Tee

Ask A Question

Description & Features

The brass push>connect tube fitting with a 0.38 inch tube OD run to 1/4-18 male NPT swivel branch tee offers ease of assembly and reliable performance in high-demand industrial applications. Made from nickel-plated brass and featuring Buna-N O-rings this fitting is designed for compressed pneumatic instrumentation circuit lubricant and cooling lines. The assembly process requires no tools and the fittings are reusable providing significant time savings.

Designed for ease of use simply push the tubing into the fitting to connect and depress the collet ring with two fingers to disconnect. The fitting operates within a temperature range of -40F to 200F although this range should be checked against the compatible plastic tubing's temperature limits. Capable of withstanding pressures up to 250 psi these fittings are also rated for 29.5 inches of mercury vacuum.

For optimal performance use with PT230 and TP160 nylon and PT240 polyethylene tubing.

Supplier Part Number: 1172X6S

MPN: 1172X6S

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
0.64
L
2.20
Supplier Part Number
1172X6S
Thread 1
1/4-18
Tube O.D.
0.38
Tube O.D.
0.375
Alternate Part Numbers
Alternate Part Number C1HN52, Alternate Part Number IG1172X6S, Alternate Part Number MI-00293818, Alternate Part Number MINO-00015X02590, Alternate Part Number MINO-00925F41518
Product Weight
0.14 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 F L Price Action
Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD Run To 1/8-27 Male NPT Swivel Branch, Tee

1172X2S Brass Push>Connect To Male NPT Tee

0.125

1/8-27

0.35

1.57

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD Run To 1/8-27 Male NPT Swivel Branch, Tee

1172X4S Brass Push>Connect To Male NPT Tee

0.25

1/8-27

0.46

1.77

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD Run To 1/4-18 Male NPT Swivel Branch, Tee

1172X6S Brass Push>Connect To Male NPT Tee

0.375

1/4-18

0.64

2.2

Product Questions & Answers (2)

Question by: Shawn T on Jul 30, 2025, 8:46 PM
got 3/8 tube on the run, but the branch is that 1/4-18 male npt that can swivel around?
Answer by: Customer Support on Aug 1, 2025, 6:20 AM
On this tee, the run side is for 0.38 inch tube OD push to connect, and the branch is a 1/4-18 male NPT swivel connection, so you can thread it in and still rotate for alignment.
Question by: Ralph F on Mar 21, 2026, 6:44 PM
Reckon this fitting'll work alright for hooking up some coolant lines?
Answer by: Customer Support on Mar 23, 2026, 4:53 PM
Designed for compressed pneumatic, instrumentation circuit, lubricant, and cooling lines, this fitting should suit your coolant line application well. It's made from nickel-plated brass with Buna-N O-rings, so it's built to handle industrial environments.
