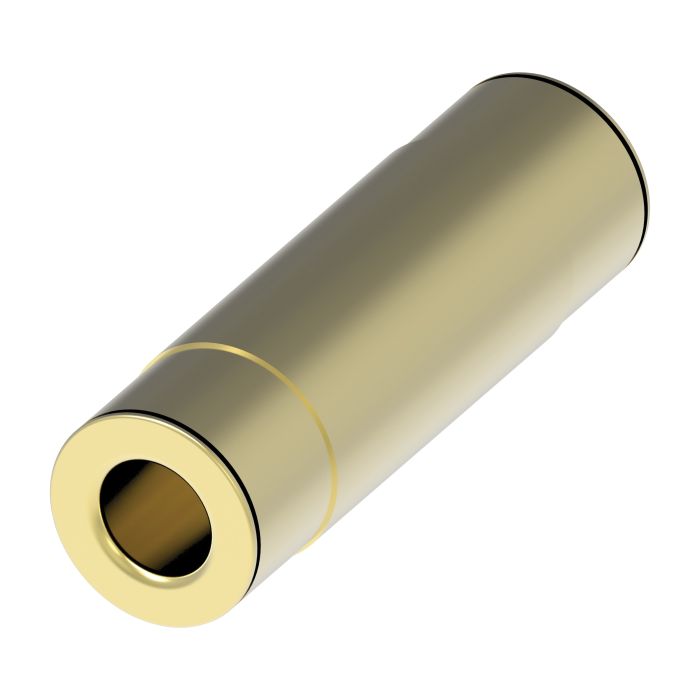

main product photo

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD Union

Ask A Question

Description & Features

The Brass Push>Connect Tube Fitting with a 0.50-inch tube OD union is designed to facilitate efficient connections in compressed pneumatic instrumentation circuits lubricant and cooling lines. This fitting crafted by Danfoss Power Solutions (Aeroquip Inc-Alternate) is renowned for its no-tool requirement enabling ease of assembly and reusability.

Constructed from nickel-plated brass the fitting exhibits a pressure range of up to 250 psi ensuring robust performance. It features an O-Ring of Buna-N construction with Viton options available upon special order. The fitting is compatible with PT230 and TP160 nylon and PT240 polyethylene tubing.

Withstanding temperatures from -40F to 200F users must also adhere to the temperature range of the tubing in use. For assembly simply push the tubing into the fitting and to disconnect depress the collet ring with two fingers and withdraw. This model is designed to save time during both assembly and disassembly processes.

**Supplier Part Number:** 1162X8

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
L
1.75
N
0.83
Supplier Part Number
1162X8
Tube O.D.
0.50
Tube O.D.
0.5
Alternate Part Numbers
Alternate Part Number C1HL69, Alternate Part Number MI-01478784, Alternate Part Number MINO-00925F42001
Product Weight
0.09 lbs

Related Documents

Similar Products

Model Number Tube O.D. L N Price Action
Brass Push>Connect Tube Fitting, 0.13 Inch Tube OD Union

1162X2 Brass Push>Connect Tube Union

0.125

1.26

0.59

Brass Push>Connect Tube Fitting, 0.16 Inch Tube OD Union

1162X2.5 Brass Push>Connect Tube Union

0.1563

1.18

0.55

Brass Push>Connect Tube Fitting, 0.25 Inch Tube OD Union

1162X4 Brass Push>Connect Tube Union

0.25

1.4

0.64

Brass Push>Connect Tube Fitting, 0.31 Inch Tube OD Union

1162X5 Brass Push>Connect Tube Union

0.3125

1.23

0.69

Brass Push>Connect Tube Fitting, 0.38 Inch Tube OD Union

1162X6 Brass Push>Connect Tube Union

0.375

1.67

0.79

Brass Push>Connect Tube Fitting, 0.50 Inch Tube OD Union

1162X8 Brass Push>Connect Tube Union

0.5

1.75

0.83

Product Questions & Answers (2)

Question by: Clint C on Dec 11, 2025, 5:13 PM
Will this work with nylon tubing, or is it just for metal?
Answer by: Customer Support on Dec 12, 2025, 9:32 PM
This fitting's made to work with PT230 and TP160 nylon, plus PT240 polyethylene tubing.
Question by: Wayne B on Feb 26, 2026, 3:35 PM
got a half inch nylon line, do i need any tools or clamps to hook this union up?
Answer by: Customer Support on Feb 28, 2026, 1:15 PM
For this push to connect union, assembly is tool free. You just push the tubing into the fitting to make the connection. To take it back apart, press the collet ring in with two fingers and pull the tube out.
