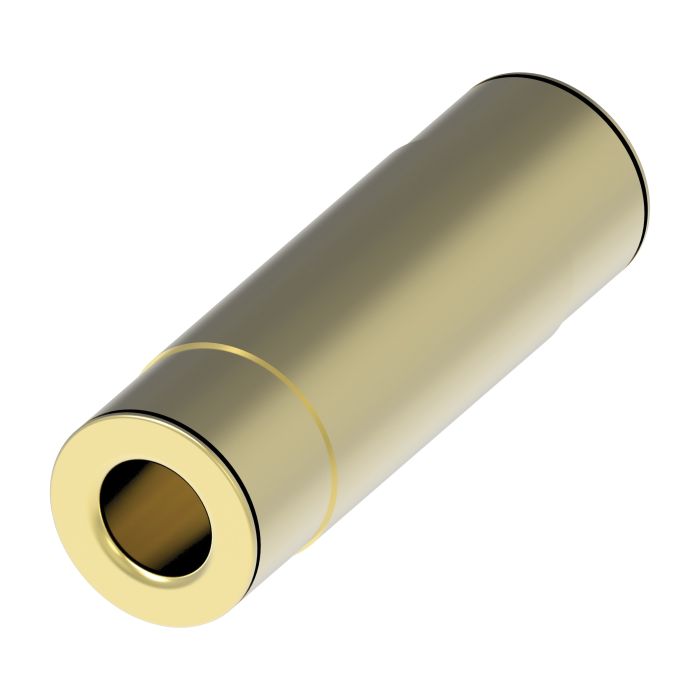

main product photo

Brass Push>Connect Metric Tube Fitting, 4.00 mm Tube OD Union

Ask A Question

Description & Features

The Danfoss / Eaton Push>Connect Union is an essential component in compressed pneumatic instrumentation circuit lubricant and cooling lines. Crafted from high-quality brass with a nickel plating this fitting ensures durability and resistance to corrosion.

This Brass Push>Connect Metric Tube Fitting 4.00 mm Tube OD Union offers effortless assembly by simply pushing the tubing into the fitting eliminating the need for tools. Disconnecting is equally simpledepress the collet ring with two fingers and withdraw.

Designed for a wide range of temperatures from -40F to 200F the fitting accommodates a pressure range up to 250 psi depending on the tube size. It is also rated at 29.5 inches of mercury vacuum. The Buna-N O-Ring seals provide reliable leak prevention with Viton seals available on request for specialized needs.

Its ease of use reusability and significant time savings in both assembly and disassembly make it a highly efficient choice for industrial applications.

MPN: EAR99

Supplier Part Number: 1162X4M

Specifications

Brand
Danfoss
Connection Size 1
4 mm
Connection Size 2
4 mm
Connection Type
Push-Fit
Connection Type 1
Metric Push-to-Connect
Connection Type 2
Metric Push-to-Connect
Dimensions
9 mm L x 8.4 mm W
Finish
Nickel-Plated
Fitting Type
Union
For Use With
PT230, TP160 Nylon and PT240 Polyethylene Tubings
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
250 psi
n Dimensions
14 mm
Series
1162X Series
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Tube O.D. L N Price Action
Brass Push>Connect Metric Tube Fitting, 10.00 mm Tube OD Union

1162X10M Brass Push>Connect Union

10

41.5

19.5

Brass Push>Connect Metric Tube Fitting, 12.00 mm Tube OD Union

1162X12M Brass Push>Connect Union

12

44.5

21

Brass Push>Connect Metric Tube Fitting, 6.00 mm Tube OD Union

1162X6M Brass Push>Connect Union

6

34

15.5

Brass Push>Connect Metric Tube Fitting, 8.00 mm Tube OD Union

1162X8M Brass Push>Connect Union

8

38

17.5

Product Questions & Answers (3)

Question by: Dale W on Oct 25, 2025, 6:31 AM
pushing tubing in without any tools -- does this actually hold up or does it loosen over time with vibration and pressure changes?
Answer by: Customer Support on Oct 27, 2025, 6:07 AM
Push-to-connect fittings like this one use a collet ring and Buna-N O-ring seal that grip the tube mechanically once inserted. At 4mm tube OD with a max working pressure of 250 psi, the connection stays secure under normal compressed air and instrumentation line conditions. The brass body with nickel plating also helps resist the kind of corrosion that tends to cause joint failures over time. If you ever need to pull it apart, you just depress the collet ring with two fingers and the tube withdraws clean. Reusability is built into the design, so repeated connect and disconnect cycles won't compromise the seal integrity the way a crushed ferrule fitting would.
Question by: Troy L on Oct 27, 2025, 1:38 PM
got some 4mm metric tube, is this union the push-in kind where you don’t need wrenches?
Answer by: Customer Support on Oct 29, 2025, 6:55 AM
Push the tubing straight into the fitting and it locks in place, no tools needed. To disconnect, press the collet ring in with two fingers and pull the tube back out.
Question by: Ronnie M on Aug 9, 2025, 9:20 PM
Will this fitting work with nylon tubing?
Answer by: Customer Support on Aug 11, 2025, 4:04 PM
This union is designed for use with compressed pneumatic instrumentation circuit lubricant and cooling lines, and it's made from brass with a nickel plating for durability.
