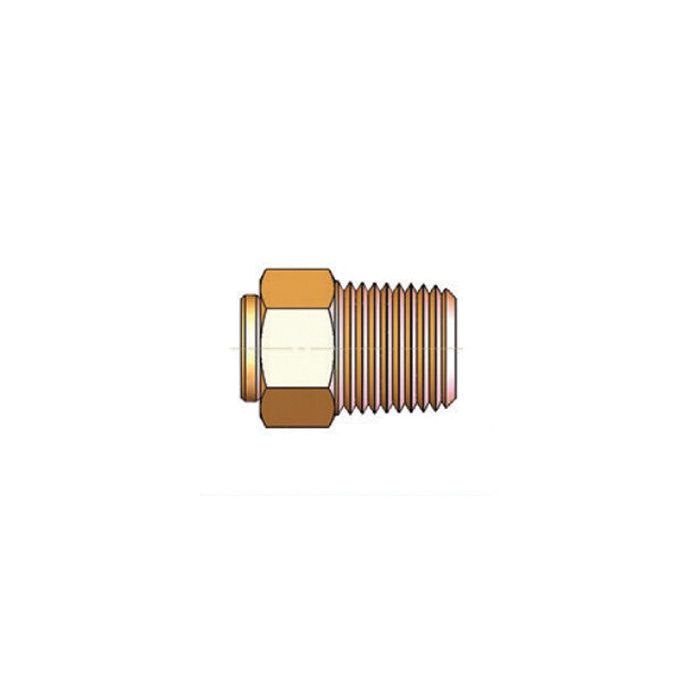

Brass Push-In Tube Fitting, 0.13 Tube OD to 1/16 Male NPT, Straight

Ask A Question

Description & Features

ALKON Corp offers a reliable brass construction push-in tube fitting suitable for various industrial applications. The fitting provides a leak-proof seal thanks to its Buna-N O-rings and pre-applied Teflon based pipe sealant on all male threads.

Quick connect and disconnect features ensure ease of use while the interior hex in straight connectors allows for precise Allen key tightening. The fitting supports full flow design further enhancing its utility.

Designed for use with polyurethane tubing (90 durometer and over) polybutylene tubing and soft metal tubing this fitting guarantees a positive stop to prevent leakage by bottoming the tube in a cavity that provides support. Suitable for use up to the maximum working pressure of thermoplastic tubing and vacuum service.

Capable of withstanding temperatures ranging from -10F to 200F this brass fitting is engineered for durability and superior performance in demanding environments.

MPN: C1FJ14

Supplier Part Number: AQ68-P-2X1

Specifications

Brand
ALKON
a Dimensions
0.81 in
b Dimensions
0.73 in
Connection Size 1
1/8 in
Connection Type
MNPT, Push-Fit
Connection Type 1
Push-to-Connect Tube
Connection Type 2
MNPT
d Dimensions
0.09 in
Dimensions
0.76 in L
Finish
Nickel-Plated
Fitting Type
Connector
For Use With
Polybutylene and Soft Metal Tubing
Material
Brass
Material Construction
Brass
Series
AQ Series
Sg How It Works
When Tubing (1) is Inserted into the Fitting, it First Passes Through the Gripping Teeth (2), Just Beyond the Gripping Teeth is the O-ring (3) Which Provides the Leak Proof Seal Against the OD, of the Tube, the Gripping Teeth Grab the Tube, Which Expands

Similar Products

Model Number Tube O.D. Thread 1 a Dimensions b Dimensions d Dimensions Price Action
Brass Push-In Tube Fitting, 0.19 Tube OD to 1/8-18 Male NPT, Straight

AQ68-P-3X2 Brass Push-In NPT Tube Fitting

0.19

1/8-18

1.04 in

0.9 in

0.16 in

Product Questions & Answers (3)

Question by: Frank B on Jun 2, 2025, 11:47 AM
got a little 0.13 OD tube, will this straight push-in fitting actually match up with a 1/16 male NPT port?
Answer by: Customer Support on Jun 3, 2025, 2:13 PM
It is made to take 0.13 inch tube O.D. on the push-in side and it has 1/16 male NPT threads on the other end, in a straight connector.
Question by: Phil W on Sep 18, 2025, 7:26 PM
Will this fitting hold up if I'm running vacuum through it?
Answer by: Customer Support on Sep 20, 2025, 7:14 PM
Yes, this fitting is suitable for vacuum service.
Question by: Debbie S on Jul 20, 2025, 9:56 PM
Got some polyurethane tubing I need to connect to a 1/16 NPT male port, this the right fitting for that?
Answer by: Customer Support on Jul 22, 2025, 12:59 PM
For polyurethane tubing at 90 durometer or harder, yeah, this fitting is built exactly for that pairing. The tube OD it accepts is 0.13 inches, so just confirm your tubing matches that outside diameter before ordering. The male thread is 1/16 NPT, and there's pre-applied Teflon-based sealant already on those threads, so you won't need to mess with tape on assembly. Push the tube in until it bottoms out in the cavity and you're sealed up.
