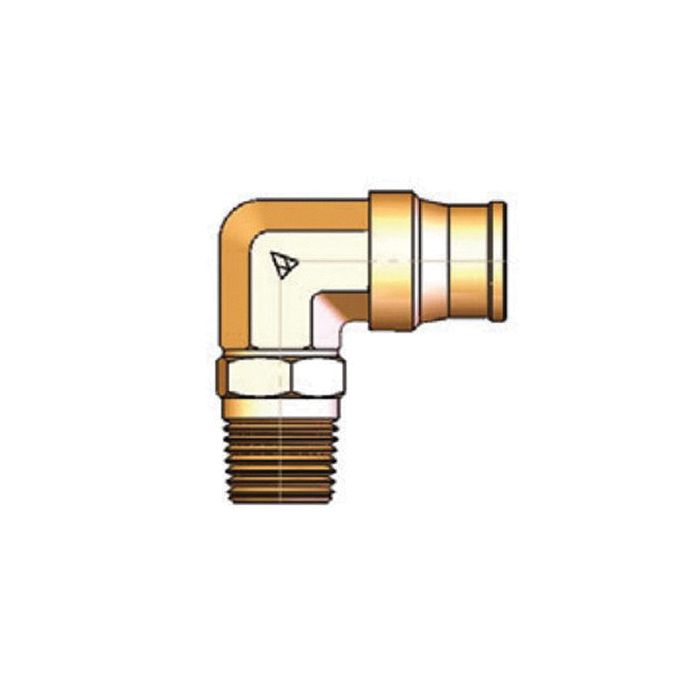

main product photo

Brass Push-In Tube Fitting, 0.38 Tube OD to 1/4-18 Male NPT Swivel, 90 deg Elbow

Ask A Question

Description & Features

The AQ69-PS-6X4 designed by Alkon Corp is a high-quality brass push-in tube fitting featuring a 0.38 tube OD and 1/4-18 male NPT swivel connection for versatile industrial applications. This 90-degree elbow fitting ensures a positive seal with no leaks thanks to the pre-applied Teflon based pipe sealant on all male threads.

Constructed from durable brass this fitting includes Buna-N O-rings for optimal sealing and is suitable for use with polyurethane polybutylene and soft metal tubing. The quick connect and disconnect feature streamlines assembly and maintenance processes.

Featuring a full flow design the AQ69-PS-6X4 supports a temperature range of -10F to 200F and is compatible with the working pressure limits of thermoplastic tubing used. An interior hex in the straight connectors allows for Allen key tightening adding to the ease of installation.

The fitting's mechanism involves gripping teeth that secure the tube and an O-ring that ensures a leak-proof seal offering reliable performance in demanding environments.

MPN: C1CK31

Supplier Part Number: AQ69-PS-6X4

Specifications

Brand
ALKON
a Dimensions
1.08 in
b Dimensions
0.94 in
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
MNPT, Push-Fit
Connection Type 1
Push-to-Connect Tube
Connection Type 2
MNPT
d Dimensions
1.45 in
Dimensions
1.62 in L
Fitting Type
Elbow
For Use With
Polybutylene and Soft Metal Tubing
Material
Brass
Material Construction
Brass
Series
AQ Series
Sg How It Works
When Tubing (1) is Inserted into the Fitting, it First Passes Through the Gripping Teeth (2), Just Beyond the Gripping Teeth is the O-ring (3) Which Provides the Leak Proof Seal Against the OD, of the Tube, the Gripping Teeth Grab the Tube, Which Expands
Tube OD
3/8 in

Similar Products

Model Number Tube O.D. Thread 1 a Dimensions b Dimensions d Dimensions Price Action
Brass Push-In Tube Fitting, 0.19 Tube OD to 1/8-27 Male NPT Swivel, 90 deg Elbow

AQ69-PS-3X2 Brass Push-In To Male NPT 90 Elbow

0.19

1/8-27

0.89 in

3/4 in

1.17 in

Product Questions & Answers (1)

Question by: Todd A on Jan 19, 2026, 7:20 PM
got some 3/8 poly tubing i need to run around a tight corner on a pneumatic line. this fitting work for that?
Answer by: Customer Support on Jan 21, 2026, 6:24 AM
Polyurethane tubing at 0.38 inch OD is exactly what this fitting is built for. Push the tube in and the internal gripping teeth lock onto it, then the O-ring seals against the tube's outer diameter. The 90-degree elbow handles that direction change without any bending or kinking the line. Just make sure your polyurethane tubing is 90 durometer or harder, since softer material won't hold in the grip teeth the way it needs to.
