Brand
ALKON
MPN: AQ72-PS-4X4
Supplier Part Number: AQ72-PS-4X4

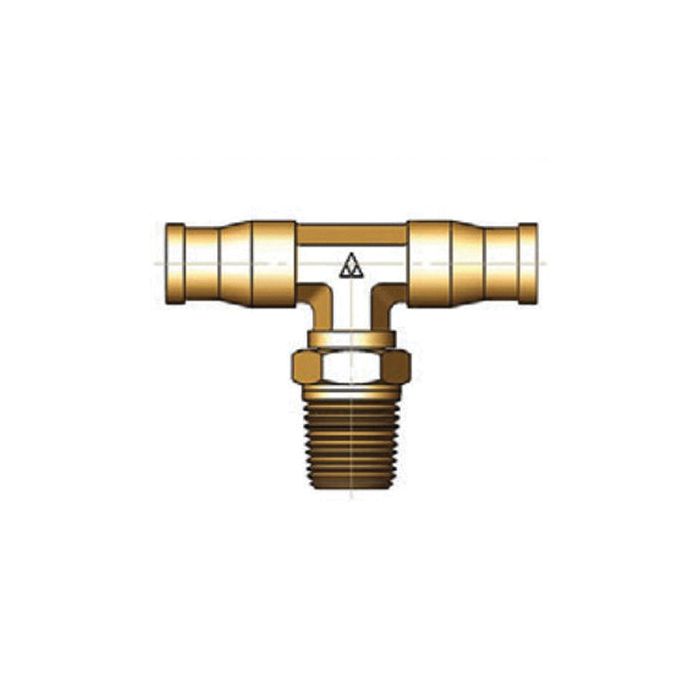

The full flow design ensures optimal efficiency accommodating a temperature range from -10F to 200F and suitable for vacuum service. This branch tee fitting includes a stationary or swivel option for elbows and tees providing flexibility in various setups. When the tubing is inserted into the fitting the gripping teeth secure it while the O-ring ensures a leak-proof seal. The fitting is capable of handling the maximum working pressure of the thermoplastic tubing used.|
Brand
ALKON
|
a Dimensions
1.04 in
|
b Dimensions
0.91 in
|
Connection Size 1
1/4 in
|
Connection Size 2
1/4 in
|
Connection Type
MNPT, Push-Fit
|
Connection Type 1
Push-to-Connect Tube
|
Connection Type 2
MNPT
|
Connection Type 3
Push-to-Connect
|
d Dimensions
1.33 in
|
Dimension Standards
FMVSS 49 CFR 571.106, SAE J2494-3
|
Dimensions
1.47 in L
|
Fitting Type
Tee
|
For Use With
Polybutylene and Soft Metal Tubing
|
Material
Brass
|
Material Construction
Brass
|
Series
AQ Series
|
Sg How It Works
When Tubing (1) is Inserted into the Fitting, it First Passes Through the Gripping Teeth (2), Just Beyond the Gripping Teeth is the O-ring (3) Which Provides the Leak Proof Seal Against the OD, of the Tube, the Gripping Teeth Grab the Tube, Which Expands
|
Tube OD
1/4 in
|
| Model Number | Connection Size 1 | Connection Size 2 | Connection Size 3 | Price | Action |
|---|---|---|---|---|---|
|
AQ72-PS-6X4 Brass Push-In Tube to Male NPT Tee |
3/8 in |
3/8 in |
3/8 in |
|
