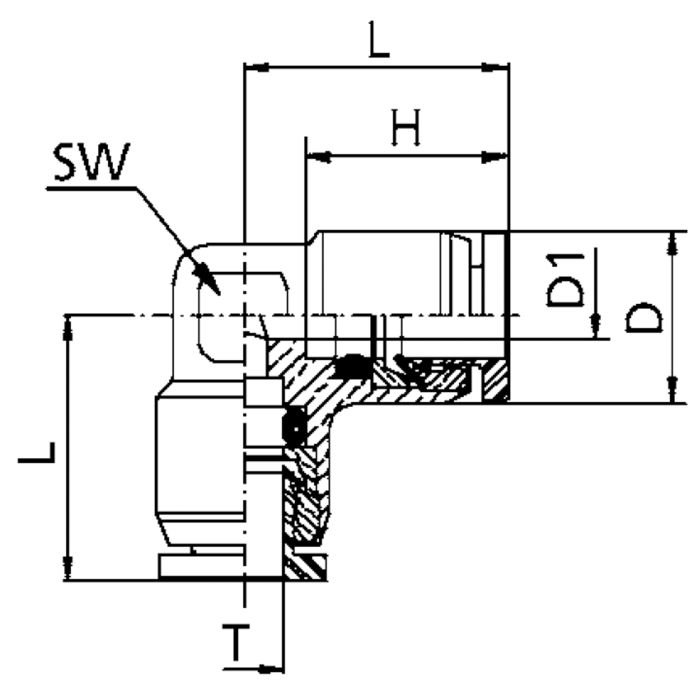

main product photo

Brass Push Tube Fitting, 0.50 Inch Tube OD Union Elbow

Ask A Question

Description & Features

Optimize your industrial systems with this precision-engineered component. Constructed from high-quality brass material it ensures durability and reliability in various demanding environments. The 0.50-inch outer diameter provides a secure and efficient connection.

This fitting is designed for seamless integration within push tube setups supporting a wide range of industrial applications. Its union elbow design facilitates smooth directional changes without compromising structural integrity.

Manufactured by Numatics c/o Asco LP this fitting meets rigorous standards for industrial performance. The product is cataloged under C1LC24 representing a commitment to excellence in fluid control.

Maintaining a compact size with a height of 0.748 inches it offers a space-saving solution while ensuring robust operational performance. The product model label classifies it under Push Tube Fittings signifying its specialized application in the field.

MPN: INB106-102-000

Supplier Part Number: INB106-102-000

Specifications

Brand
Asco
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Push-Fit
Connection Type 1
Push-In Tube
Connection Type 2
Push-to-Connect
Connection Type 4
Push-to-Connect
d1 Dimensions
0.413 in
Dimensions
0.827 in Dia x 1.161 in L x 0.748 in H
Finish
Nickel-Plated
Fitting Type
Elbow
Material
Brass
Material Construction
Brass
Series
INB106 Series
Tube OD
1/2 in

Similar Products

Model Number Tube O.D. (T) D d1 Dimensions L H Price Action
Brass Push Tube Fitting, 0.25 Inch Tube OD Union Elbow

INB106-104-000 Brass Push Tube Elbow Union

0.25

0.472

0.157 in

0.74

0.531 in

Brass Push Tube Fitting, 0.38 Inch Tube OD Union Elbow

INB106-308-000 Brass Push Tube Elbow Union

0.375

0.709

0.295 in

1.004

0.669 in

Brass Push Tube Fitting, 0.31 Inch Tube OD Union Elbow

INB106-516-000 Brass Push Tube Elbow Union

0.3125

0.591

0.236 in

0.858

0.63 in

Brass Push Tube Fitting, 0.16 Inch Tube OD Union Elbow

INB106-532-000 Brass Push Tube Elbow Union

0.1563

0.394

0.118 in

0.657

0.492 in

Product Questions & Answers (2)

Question by: Cody S on Nov 10, 2025, 6:53 AM
What size tubing does this union elbow work with?
Answer by: Customer Support on Nov 11, 2025, 4:34 PM
Half-inch outer diameter tubing is what you need to pair with this fitting. It's a push-to-connect style, so the tube slides in and locks without any threading or wrenching on the tube end itself. Just make sure your tube OD measures true to 0.50 inches and you'll get a solid, secure connection.
Question by: Janice F on Nov 22, 2025, 10:29 AM
trying to hook up 1/2 inch push-to-connect tube, is this the elbow union that fits that size?
Answer by: Customer Support on Nov 23, 2025, 11:26 AM
For a 0.50 inch tube OD push tube setup, this union elbow matches that tube size. It is a brass push tube fitting meant to join tubing and make a 90 degree turn.
