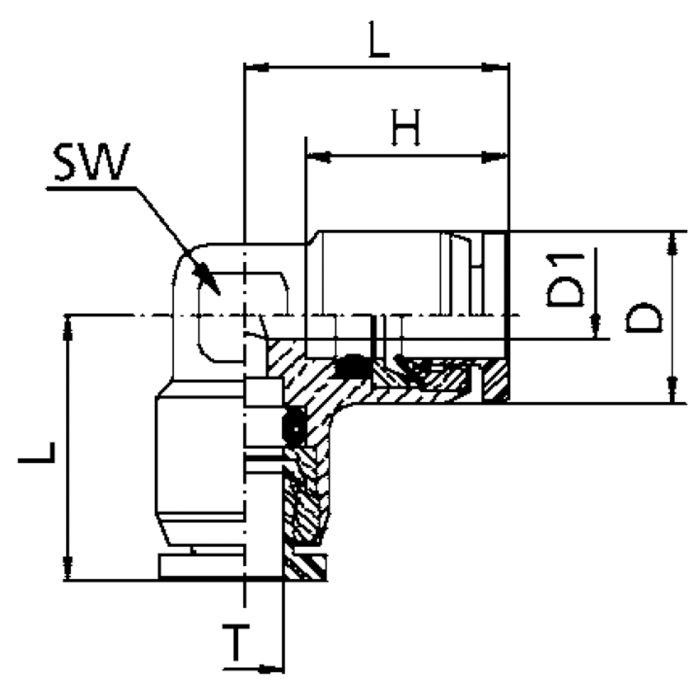

main product photo

Brass Push Tube Fitting, 0.25 Inch Tube OD Union Elbow

Ask A Question

Description & Features

The Brass Push Tube Fitting 0.25 Inch Tube OD Union Elbow is engineered for robust applications in industrial systems. Designed by Numatics - c/o ASCO LP it features a compact height of 0.531 inches making it suitable for space-constrained environments.

This fitting supports a tube outer diameter of 0.25 inches ensuring a secure and efficient connection. Optimized for performance it is ideal within various industrial setups where reliability is essential.

With its union elbow design this fitting facilitates seamless directional changes in tubing configurations contributing to streamlined system layouts. The brass construction guarantees durability and resistance to wear.

MPN: INB106-104-000

Supplier Part Number: INB106-104-000

Specifications

Brand
Asco
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Push-Fit
Connection Type 1
Push-In Tube
Connection Type 2
Push-to-Connect
d1 Dimensions
0.157 in
Dimension Standards
UNI 571-65
Dimensions
0.472 in Dia x 0.74 in L x 0.531 in H
Finish
Nickel-Plated
Fitting Type
Elbow
Material
Brass
Material Construction
Brass
Series
INB106 Series
Tube OD
1/4 in

Similar Products

Model Number Tube O.D. (T) D d1 Dimensions L H Price Action
Brass Push Tube Fitting, 0.50 Inch Tube OD Union Elbow

INB106-102-000 Brass Push Tube Elbow Union

0.5

0.827

0.413 in

1.161

0.748 in

Brass Push Tube Fitting, 0.38 Inch Tube OD Union Elbow

INB106-308-000 Brass Push Tube Elbow Union

0.375

0.709

0.295 in

1.004

0.669 in

Brass Push Tube Fitting, 0.31 Inch Tube OD Union Elbow

INB106-516-000 Brass Push Tube Elbow Union

0.3125

0.591

0.236 in

0.858

0.63 in

Brass Push Tube Fitting, 0.16 Inch Tube OD Union Elbow

INB106-532-000 Brass Push Tube Elbow Union

0.1563

0.394

0.118 in

0.657

0.492 in

Product Questions & Answers (1)

Question by: Bonnie W on Nov 18, 2025, 12:44 PM
fitting's only a quarter inch tube OD right? just want to make sure before I order a handful of these
Answer by: Customer Support on Nov 20, 2025, 6:58 AM
Correct, the tube outer diameter on this one is 0.25 inches. It's a union elbow configuration, so both ends connect to 1/4 inch OD tubing and let you make a directional change in the line without needing any additional adapters or extra fittings in between.
