Brass Push Tube Fitting, 0.38 Inch Tube OD Union Elbow

Description & Features

Enhance the performance of your industrial applications with this high-quality brass fitting. This Brass Push Tube Fitting 0.38 Inch Tube OD Union Elbow ensures reliable and secure connections for your tubing needs. Manufactured by Numatics - c/o Asco LP this component offers durability and precise fitting for various industrial setups.

Crafted for efficiency this union elbow features a tube outer diameter of 0.375 inches providing a snug and leak-resistant fit. The product stands at a height of 0.669 inches making it suitable for compact spaces where traditional fittings might be cumbersome.

Designed for use in demanding environments the union elbow maintains performance under diverse conditions. Its brass construction delivers excellent corrosion resistance ensuring longevity and reducing maintenance requirements.

Ideal for fitting configurations where a 90-degree connection is necessary this product facilitates seamless integration into your system. The brass material provides a stable and secure connection making it an indispensable component in your inventory.

MPN: C1LC26

Supplier Part Number: INB106-308-000

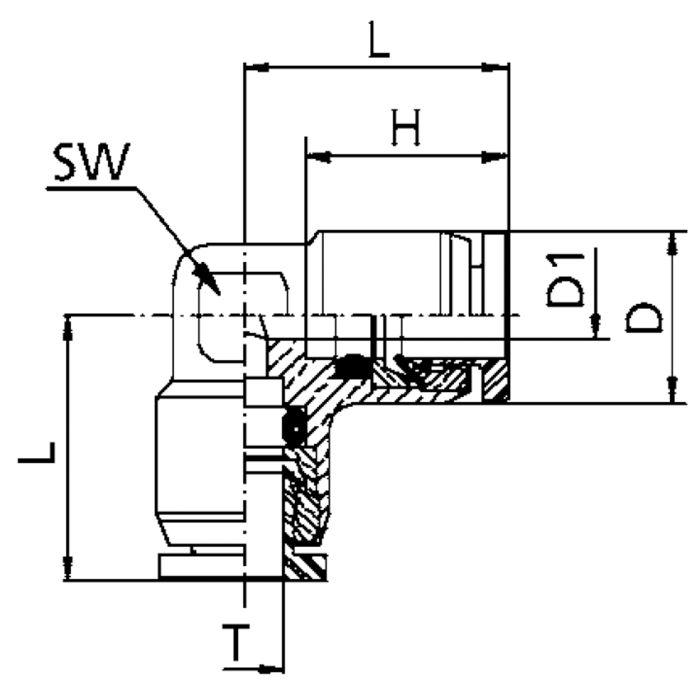

Specifications

D 0.71	D1 0.30	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	H 0.669 in	L 1.00	Supplier Part Number INB106-308-000	Tube O.D. (T) 0.38	Alternate Part Numbers Alternate Part Number C1LC26	Product Weight 0.67 lbs

Similar Products

Model Number	Tube O.D. (T)	D	D1	L	H
INB106-102-000 Brass Push Tube Elbow Union	0.5	0.827	0.413	1.161	0.748 in
INB106-104-000 Brass Push Tube Elbow Union	0.25	0.472	0.157	0.74	0.531 in
INB106-308-000 Brass Push Tube Elbow Union	0.375	0.709	0.295	1.004	0.669 in
INB106-516-000 Brass Push Tube Elbow Union	0.3125	0.591	0.236	0.858	0.63 in
INB106-532-000 Brass Push Tube Elbow Union	0.1563	0.394	0.118	0.657	0.492 in

Product Questions & Answers (3)

Question by: Ross T on Mar 2, 2026, 1:49 PM

fitting's only 3/8 inch tube OD right? want to make sure before i order a handful of these for a panel build

Answer by: Customer Support on Mar 4, 2026, 6:02 AM

Correct, the tube outer diameter on this union elbow is 0.375 inches, which is your standard 3/8 inch push tube size. It's a 90-degree connection, so both ports accept that same tube size. If your tubing matches that OD, you'll get a snug, secure fit without any adapters in between.

Question by: Scott P on Nov 5, 2025, 4:15 PM

What size tubing does this elbow fit, exactly?

Answer by: Customer Support on Nov 7, 2025, 9:24 AM

It’s designed for tubing with a 0.375 inch outer diameter, which is typically referred to as 3/8 inch.

Question by: Vince A on Sep 29, 2025, 7:12 PM

trying to swap out an elbow on a 3/8 tube line, is this the right size or am i gonna fight it

Answer by: Customer Support on Oct 1, 2025, 8:49 AM

For a 3/8 inch tube line, the key spec is the tube O.D., and this union elbow is made for 0.375 inch tube outside diameter. That matches standard 3/8 inch tubing, so it should be the correct size for that tube O.D.
