Brass Push Tube Fitting, 0.16 Inch Tube OD Union Elbow

Description & Features

Constructed from durable brass, the Numatics Brass Push Tube Fitting, 0.16 Inch Tube OD Union Elbow offers reliable performance in industrial applications. Designed for efficient tube connections, its compact dimensions, D: 0.394 inches, H: 0.492 inches, and L: 0.657 inches, ensure space-saving installation in complex systems. The fitting supports a tube outer diameter of 0.1563 inches, providing compatibility with a range of tubing sizes.

This union elbow is ideal for facilitating directional changes in pneumatic systems, making it a versatile component in various industrial environments. The precise engineering by Asco Lp Cylinder ensures seamless integration with other Numatics components, enhancing overall system efficiency and reliability.

SKU: INB106-532-000

Supplier Part Number (MPN): INB106-532-000

Alternate Part Numbers: C1LC28

Specifications

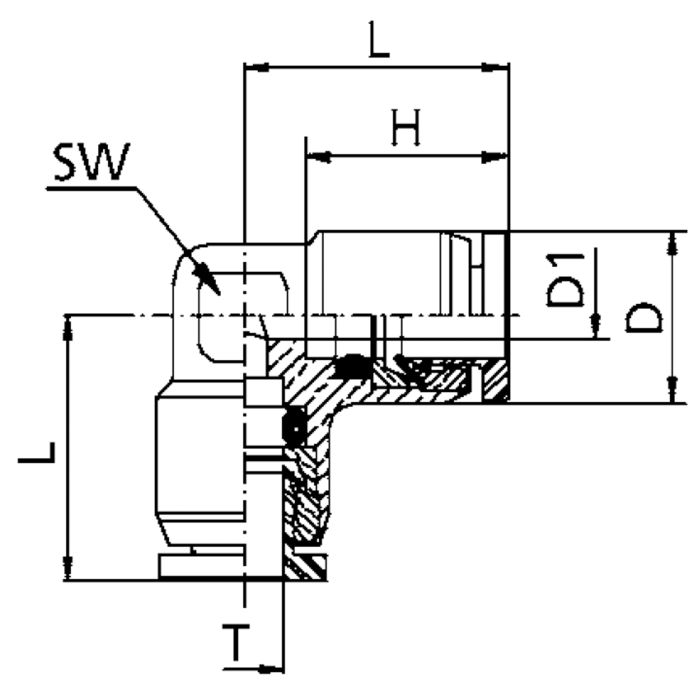

D 0.39	D1 0.12	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	H 0.492 in	L 0.66	Supplier Part Number INB106-532-000	Tube O.D. (T) 0.16	Alternate Part Numbers Alternate Part Number C1LC28	Product Weight 0.03 lbs

Similar Products

Model Number	Tube O.D. (T)	D	D1	L	H
INB106-102-000 Brass Push Tube Elbow Union	0.5	0.827	0.413	1.161	0.748 in
INB106-104-000 Brass Push Tube Elbow Union	0.25	0.472	0.157	0.74	0.531 in
INB106-308-000 Brass Push Tube Elbow Union	0.375	0.709	0.295	1.004	0.669 in
INB106-516-000 Brass Push Tube Elbow Union	0.3125	0.591	0.236	0.858	0.63 in
INB106-532-000 Brass Push Tube Elbow Union	0.1563	0.394	0.118	0.657	0.492 in

Product Questions & Answers (2)

Question by: Hank T on Sep 2, 2025, 4:22 PM

trying to swap out an elbow on a small air line, is this the one for 5/32 tubing?

Answer by: Customer Support on Sep 4, 2025, 3:18 PM

Fit comes down to the tube outside diameter. This union elbow is made for 0.1563 inch tube OD, which is the common 5/32 size.

Question by: Frank O on Mar 21, 2026, 12:09 PM

fitting says 0.16 inch tube OD but the specs show 0.1563, which one do I actually go by when matching up my tubing?

Answer by: Customer Support on Mar 22, 2026, 7:13 PM

Go with 0.1563 inches, which works out to 5/32 inch tubing. The 0.16 figure is just a rounded number used in the product name. If you're pulling tubing off a shelf and it's labeled 5/32 OD, that's your match.
