Brass Push Tube Fitting, Inch Tube OD Plug

Description & Features

Designed to seal open tube ports in pneumatic and fluid control systems, this Numatics Brass Push Tube Fitting, Inch Tube OD Plug provides a reliable termination point for unused push-to-connect tube connections. Constructed from brass, the fitting offers good corrosion resistance and durability in moderate-pressure pneumatic applications.

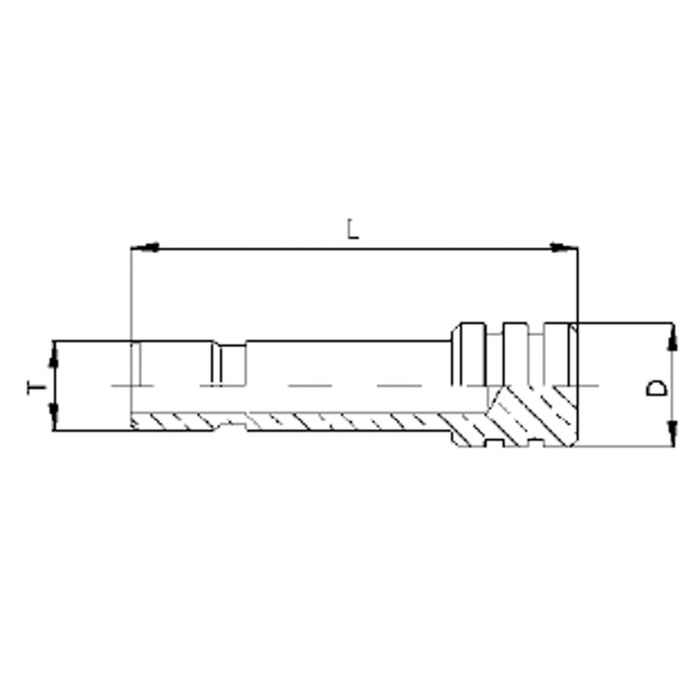

With a tube OD dimension (T) of 0.1563 inches, an overall length (L) of 0.906 inches, and a body diameter (D) of 0.236 inches, this plug is sized for compact installations where space is limited. The push-in design allows straightforward installation without additional tooling, making it well suited for panel assemblies, manifolds, and pneumatic distribution circuits where a port needs to be capped off securely.

SKU: IN118-532-000

Supplier Part Number (MPN): IN118-532-000

Alternate Part Numbers: C1LC12

Specifications

D 0.24	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	L 0.91	Supplier Part Number IN118-532-000	T 0.16	Alternate Part Numbers Alternate Part Number C1LC12	Product Weight 0.01 lbs

Similar Products

Model Number	T	D	L
IN118-102-000 Brass Push Tube Plug	0.5	0.591	1.26
IN118-104-000 Brass Push Tube Plug	0.25	0.315	0.984
IN118-308-000 Brass Push Tube Plug	0.375	0.472	1.102
IN118-516-000 Brass Push Tube Plug	0.3125	0.394	1.063
IN118-532-000 Brass Push Tube Plug	0.1563	0.236	0.906
