Brass Push Tube Fitting, Inch Tube OD Reducer

Description & Features

Designed for reducing tube connections in compressed air and pneumatic systems, this Numatics brass push tube fitting steps down from a 1/4 inch tube OD to a 5/32 inch tube OD in a compact inline body. The reducer measures 1.142 in length with an overall height of 0.492 in, making it suitable for installations where space is a consideration. Brass construction provides reliable corrosion resistance in typical industrial pneumatic environments.

The Brass Push Tube Fitting, Inch Tube OD Reducer uses push-to-connect technology, allowing tubing to be inserted without tools for a secure, leak-resistant connection. It is commonly used in pneumatic control circuits and automation assemblies where two different tube sizes must be joined in-line.

SKU: INB121-104-532

Supplier Part Number (MPN): INB121-104-532

Alternate Part Numbers: C1LC52

Specifications

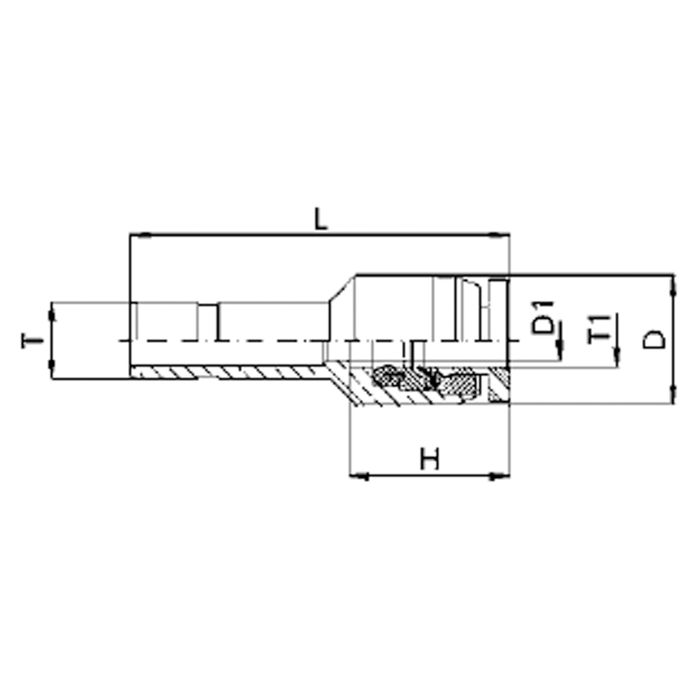

D 0.39	D1 0.12	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	H 0.492 in	L 1.14	Supplier Part Number INB121-104-532	T 0.25	T1 0.16	Alternate Part Numbers Alternate Part Number C1LC52	Product Weight 0.01 lbs

Similar Products

Model Number	T	T1	D	D1	L	H
INB121-102-104 Brass Push Tube Reducer	0.5	0.25	0.472	0.157	1.417	0.531 in
INB121-102-308 Brass Push Tube Reducer	0.5	0.375	0.669	0.295	1.673	0.669 in
INB121-104-532 Brass Push Tube Reducer	0.25	0.157	0.394	0.118	1.142	0.492 in
INB121-308-104 Brass Push Tube Reducer	0.375	0.25	0.472	0.157	1.339	0.531 in

Product Questions & Answers (2)

Question by: Darryl G on May 2, 2025, 6:09 AM

trying to connect a 1/4 inch air line to a smaller 5/32 tube on a pneumatic panel and need something to bridge the two sizes inline. this the right fitting for that?

Answer by: Customer Support on May 4, 2025, 6:00 AM

That's what this reducer is built for. It connects a 1/4 inch OD tube on one end to a 5/32 inch OD tube on the other, all in a single inline body. Push-to-connect on both ends means you just seat the tubing and you're done, no tools needed. At just over an inch long and under half an inch tall, it tucks in tight without taking up much real estate in the panel.

Question by: Neal F on Mar 2, 2026, 7:06 PM

got 1/4 air line on one side and 5/32 on the other, is this the little push-in reducer for that?

Answer by: Customer Support on Mar 4, 2026, 7:24 AM

For stepping down between two tube sizes in-line, it connects 1/4 inch tube OD on one end to 5/32 inch tube OD on the other using push-to-connect ends.
