Brass Push Tube Fitting, 0.50 Inch Tube OD Run & Branch To 3/8 NPT Male Swivel Run, Tee

Description & Features

Designed for efficient and reliable connections, the Brass Push Tube Fitting offers a seamless solution for industrial applications requiring a 0.50 inch tube OD run and branch connection to a 3/8 NPT male swivel run. Crafted by Numatics, this fitting ensures durability and precision with its robust brass construction, making it ideal for demanding environments. The swivel run tee design allows for flexible installation and secure connections, enhancing operational efficiency.

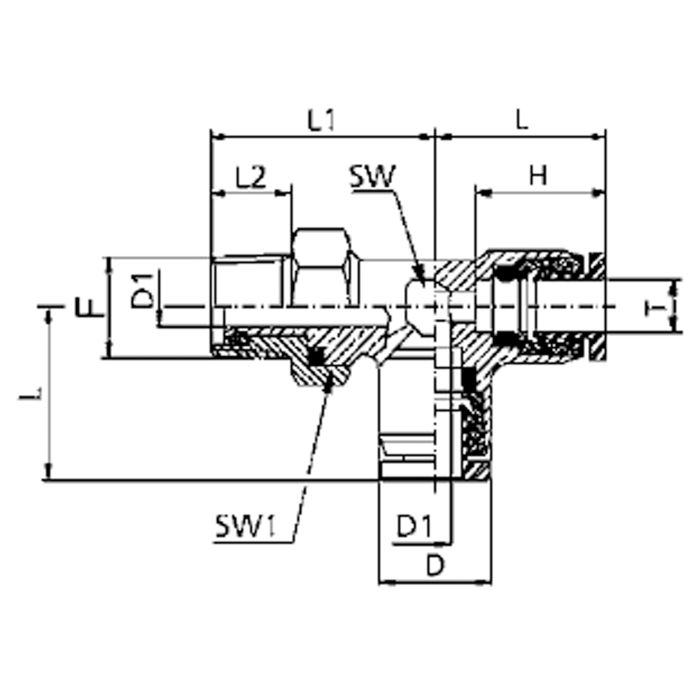

The fitting features dimensions such as a diameter (D) of 0.827 inches, a length (L) of 1.181 inches, and a thread size of 3/8 NPT, ensuring compatibility with a range of systems. Its compact design, with a length (L1) of 1.299 inches, makes it suitable for space-constrained setups. With alternate part numbers like C1LC45, MI-06587340, and MINO-00609X07514, this fitting offers versatile compatibility across various assemblies.

SKU: INB116-102-022

Supplier Part Number (MPN): INB116-102-022

Alternate Part Numbers: C1LC45, MI-06587340, MINO-00609X07514

Specifications

Brand Asco	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Size 3 3/8 in	Connection Type NPT, Push-Fit	Connection Type 1 Push-In Tube	Connection Type 2 Push-Fit	Connection Type 3 NPTF	d1 Dimensions 0.315 in	d Dimensions 0.827 in	Dimensions 1.181 in L	Finish Nickel-Plated	Fitting Type Tee	l1 Dimensions 1.299 in	l2 Dimensions 0.512 in	Material Brass	Material Construction Brass	Series INB116 Series	Tube OD 1/2 in

Similar Products

Model Number	Tube O.D. (T)	Thread 1	D	d1 Dimensions	L	L1	l2 Dimensions
INB116-102-023 Brass Push Tube To Male NPT Tee	0.5	1/2 NPT	0.827	0.315 in	1.181	1.476	0.709 in
INB116-104-020 Brass Push Tube To Male NPT Tee	0.25	1/8 NPT	0.472	0.157 in	0.74	0.996	0.374 in
INB116-104-021 Brass Push Tube To Male NPT Tee	0.25	1/4 NPT	0.472	0.236 in	0.74	1.142	0.512 in
INB116-104-022 Brass Push Tube To Male NPT Tee	0.25	3/8 NPT	0.472	0.236 in	0.74	1.181	0.512 in

Product Questions & Answers (2)

Question by: Brett P on Oct 9, 2025, 1:35 PM

got a half inch tube line and need to tee off it, is this the one with the 3/8 npt male swivel on the run

Answer by: Customer Support on Oct 11, 2025, 12:41 PM

For a tee setup with 0.50 inch tube OD on the run and branch, this part matches that layout and uses a 3/8 NPT male swivel on the run connection. It is a Numatics brass push tube fitting sold under SKU INB116-102-022, also known as C1LC45.

Question by: Gene R on Sep 21, 2025, 7:42 PM

Got a line running 1/2 inch OD tube that needs to tee off and tie into a 3/8 NPT male port, this brass push fitting handle that kind of setup?

Answer by: Customer Support on Sep 23, 2025, 7:39 PM

That's exactly what this fitting is built for. The run and branch both accept 1/2 inch OD tube, and the swivel run side connects to a 3/8 NPT male port. The swivel feature gives you a little rotational flexibility during installation, which helps a lot when you're working in a tight spot or the port isn't oriented just right. Brass construction holds up well in most industrial pneumatic and fluid line applications.
