Brass Push Tube Fitting, 0.50 Inch Tube OD Run & Branch To 1/2 NPT Male Swivel Run, Tee

Description & Features

Featuring a robust design, the Brass Push Tube Fitting seamlessly connects a 0.50-inch tube outer diameter with a 1/2 NPT male swivel run, forming a reliable tee configuration. Crafted from high-quality brass, this fitting ensures durability and optimal performance in demanding industrial environments. It is particularly well-suited for applications requiring secure connections and flexibility due to its swivel run capability, allowing for ease of installation and alignment.

Manufactured by Numatics, this fitting (Catalog Number: C1LC46) is known for its precise engineering and reliable performance. The fitting measures 0.827 inches in diameter, with lengths of 1.181 inches, 1.476 inches, and 0.709 inches for various segments, ensuring compatibility with diverse setups. The Asco LP Cylinder brand affiliation further underscores its reliability in hydraulic systems.

SKU: INB116-102-023

Supplier Part Number (MPN): INB116-102-023

Alternate Part Numbers: C1LC46

Specifications

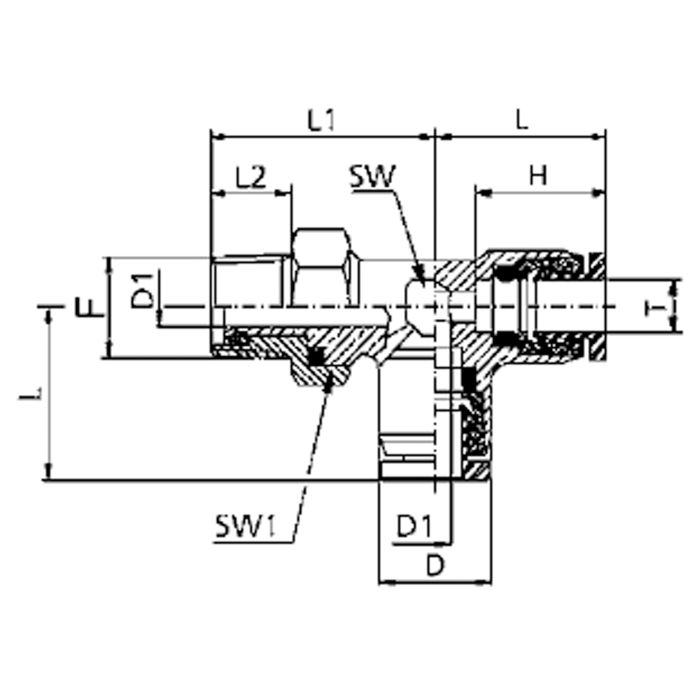

D 0.83	D1 0.32	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	L 1.18	L1 1.48	L2 0.71	Supplier Part Number INB116-102-023	Thread 1 1/2 NPT	Tube O.D. (T) 0.50	Alternate Part Numbers Alternate Part Number C1LC46	Product Weight 0.32 lbs

Similar Products

Model Number	Tube O.D. (T)	Thread 1	D	D1	L	L1	L2
INB116-102-022 Brass Push Tube To Male NPT Tee	0.5	3/8 NPT	0.827	0.315	1.181	1.299	0.512
INB116-102-023 Brass Push Tube To Male NPT Tee	0.5	1/2 NPT	0.827	0.315	1.181	1.476	0.709
INB116-104-020 Brass Push Tube To Male NPT Tee	0.25	1/8 NPT	0.472	0.157	0.74	0.996	0.374
INB116-104-021 Brass Push Tube To Male NPT Tee	0.25	1/4 NPT	0.472	0.236	0.74	1.142	0.512
INB116-104-022 Brass Push Tube To Male NPT Tee	0.25	3/8 NPT	0.472	0.236	0.74	1.181	0.512

Product Questions & Answers (2)

Question by: Stan S on Jan 30, 2026, 2:19 PM

trying to figure out if this'll work for a 1/2 inch OD tube run going into a half-inch NPT port, is that what this tee's set up for?

Answer by: Customer Support on Jan 31, 2026, 4:00 PM

That's the setup. The run and branch both take 0.50 inch OD tubing via push-to-connect, and the swivel run side threads into a 1/2 NPT male port. The swivel feature gives you a little wiggle room during install so you ain't fighting the alignment when you're threading it in.

Question by: Rick G on Feb 2, 2026, 9:54 AM

got a 1/2 inch OD tube line, will this tee take that size on both the run and the branch?

Answer by: Customer Support on Feb 3, 2026, 12:03 PM

For the tube connections, it is set up for 0.50 inch tube OD on both the run and the branch, in a tee configuration.
