Brass Push Tube Fitting, 0.25 Inch Tube OD Run & Branch To 1/8 NPT Male Swivel Run, Tee

Description & Features

Designed for high-performance fluid control applications this fitting integrates a 0.25-inch tube outer diameter with a 1/8 NPT male swivel run connection.

Manufactured by Numatics a trusted brand under the ASCO LP umbrella the fitting ensures reliable and leak-free functionality.

Its robust brass construction delivers enhanced durability making it suitable for a wide range of industrial environments.

This fitting identified by the catalog number C1LC47 supports efficient fluid transfer through its tee configuration benefiting layouts requiring run and branch connections.

Installation and maintenance are simplified due to the swivel feature contributing to streamlined setup tasks.

Supplier Part Number: INB116-104-020

Specifications

Brand Asco	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type NPT, Push-Fit	Connection Type 1 Push-In Tube	Connection Type 2 Push-Fit	Connection Type 3 NPTF	Connection Type 4 NPTF Swivel	d1 Dimensions 0.157 in	Dimension Standards UNI 571-65	Dimensions 0.472 in Dia x 0.74 in L x 0.531 in H	Finish Nickel-Plated	Fitting Type Tee	l1 Dimensions 0.996 in	l2 Dimensions 0.374 in	Material Brass	Material Construction Brass	Series INB116 Series	Tube OD 1/4 in

Similar Products

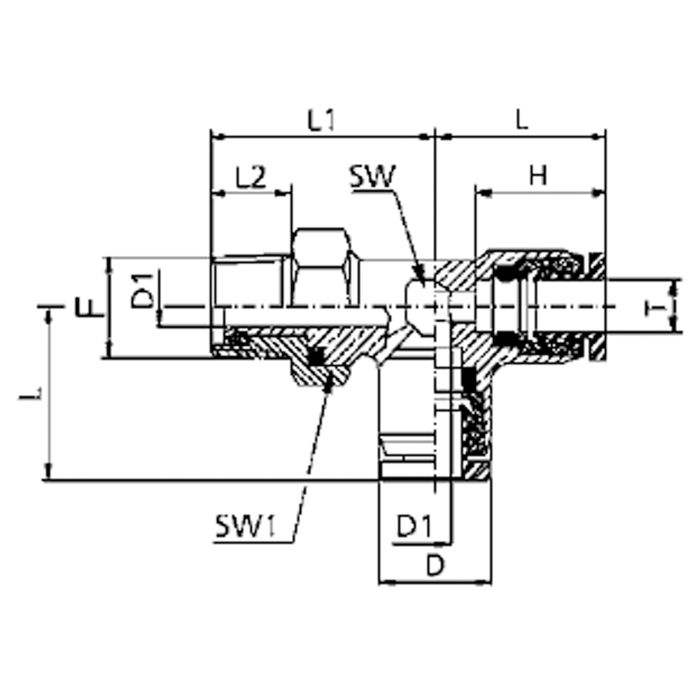

Model Number	Tube O.D. (T)	Thread 1	D	d1 Dimensions	L	L1	l2 Dimensions
INB116-102-022 Brass Push Tube To Male NPT Tee	0.5	3/8 NPT	0.827	0.315 in	1.181	1.299	0.512 in
INB116-102-023 Brass Push Tube To Male NPT Tee	0.5	1/2 NPT	0.827	0.315 in	1.181	1.476	0.709 in
INB116-104-021 Brass Push Tube To Male NPT Tee	0.25	1/4 NPT	0.472	0.236 in	0.74	1.142	0.512 in
INB116-104-022 Brass Push Tube To Male NPT Tee	0.25	3/8 NPT	0.472	0.236 in	0.74	1.181	0.512 in

Product Questions & Answers (3)

Question by: Ralph R on May 28, 2025, 10:20 AM

got a tee fitting that went out on one of our pneumatic lines, tube's a quarter inch OD and the port it threads into is 1/8 NPT. this the right replacement?

Answer by: Customer Support on May 29, 2025, 7:00 PM

That's what this fitting is built for. Quarter inch tube OD on the run and branch sides, 1/8 NPT male thread on the swivel run connection. Brass construction, push-to-connect on the tube ends, so swapping it in shouldn't take long at all. Catalog number C1LC47 if you need to cross-reference it against your parts records.

Question by: Brenda A on Apr 19, 2025, 7:57 PM

So, this thing's brass, right? How well does it hold up if you're running, say, hydraulic fluid through it all day?

Answer by: Customer Support on Apr 21, 2025, 10:21 AM

Brass offers good durability in industrial settings and provides reliable, leak-free functionality when properly installed and maintained. It's a solid choice for continuous fluid transfer.

Question by: Norm C on Jan 7, 2026, 7:39 AM

trying to hook 1/4 tube into a 1/8 npt port, is this the right tee for that?

Answer by: Customer Support on Jan 8, 2026, 9:19 PM

For a 1/4 inch tube run and branch with a 1/8 NPT male swivel connection on the run, that is exactly what this Numatics tee is built for. It is a push tube fitting in brass, with Thread 1 listed as 1/8 NPT and Tube O D at 0.25.
