Brass Push Tube Fitting, 0.38 Inch Tube OD To 3/8 NPT Male, 90 deg Elbow

Description & Features

The NUMATICS - c/o ASCO LP Brass Push Tube Fitting 0.38 Inch Tube OD To 3/8 NPT Male 90 deg Elbow is designed for reliable and durable connections in various industrial applications. This fitting ensures a tight and secure joint crucial for maintaining system integrity.

Constructed from high-quality brass this fixed elbow fitting offers excellent corrosion resistance and longevity. It supports an outer diameter of 0.375 inches for the tube and is compatible with a 3/8 NPT thread making it suitable for multiple configurations.

Ideal for use in fluid handling and pneumatic systems it enables efficient flow direction changes without compromising performance. This fitting is a dependable component that meets the stringent requirements of modern industrial setups.

MPN: C1LC31

Supplier Part Number: INB107-308-021

Specifications

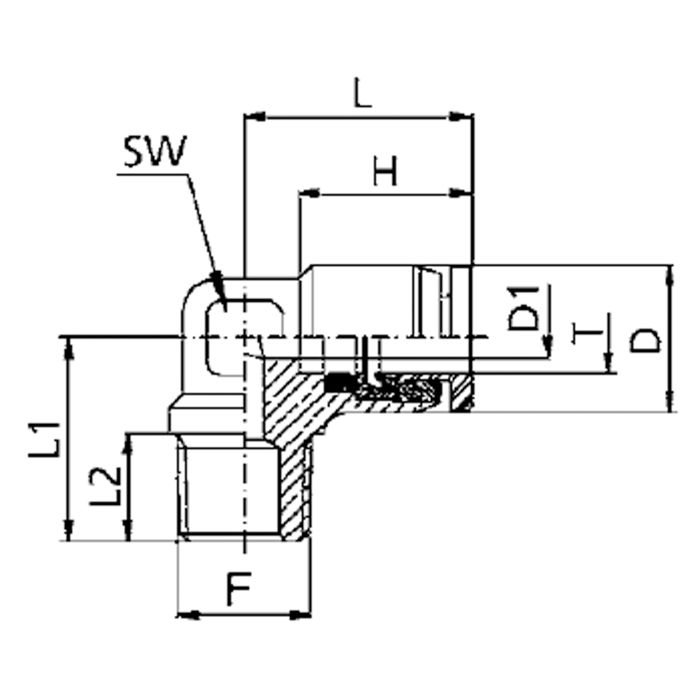

Brand Asco	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type NPT, Push-Fit	Connection Type 1 Push-In Tube	Connection Type 2 NPTF	d1 Dimensions 0.295 in	Dimensions 0.709 in Dia x 1.004 in L x 0.685 in H	Finish Nickel-Plated	Fitting Type Elbow	l1 Dimensions 1.945 in	l2 Dimensions 0.685 in	Material Brass	Material Construction Brass	Series INB107 Series	Tube OD 3/8 in

Similar Products

Model Number	Tube O.D. (T)	Thread 1	D	d1 Dimensions	L	L1	l2 Dimensions
INB107-104-020 Brass Push Tube To NPT 90 Elbow	0.25	1/8 NPT	0.472	0.157 in	0.74	0.693	0.531 in
INB107-104-021 Brass Push Tube To NPT 90 Elbow	0.25	1/4 NPT	0.472	0.157 in	0.74	0.831	0.531 in
INB107-308-022 Brass Push Tube To NPT 90 Elbow	0.375	1/4 NPT	0.709	0.295 in	1.004	0.945	0.685 in
INB107-532-020 Brass Push Tube To NPT 90 Elbow	0.1563	1/8 NPT	0.394	0.118 in	0.657	0.65	0.374 in
INB107-532-021 Brass Push Tube To NPT 90 Elbow	0.1563	1/4 NPT	0.394	0.118 in	0.657	0.787	0.512 in

Product Questions & Answers (1)

Question by: Dean K on Dec 26, 2025, 7:29 AM

fitting's got a 3/8 NPT male thread on it, that gonna work going into a standard 3/8 female port on a pneumatic valve block?

Answer by: Customer Support on Dec 27, 2025, 8:20 AM

3/8 NPT male threads are about as common as it gets on pneumatic valve blocks, so yeah, that connection should mate up fine with a standard 3/8 female NPT port. The tube side accepts a 0.375 inch OD tube using the push-to-connect mechanism, so once the NPT end is threaded in, you just push your tubing straight in to complete the connection. No ferrules or compression sleeves needed on the tube end.
