Brass Push Tube Fitting, 0.16 Inch Tube OD To 1/4 NPT Male, 90 deg Elbow

Description & Features

This Numatics brass push tube fitting features a 0.16 inch tube OD to 1/4 NPT male connection and a 90-degree elbow configuration. The fitting is designed for secure and reliable connections in pneumatic systems.

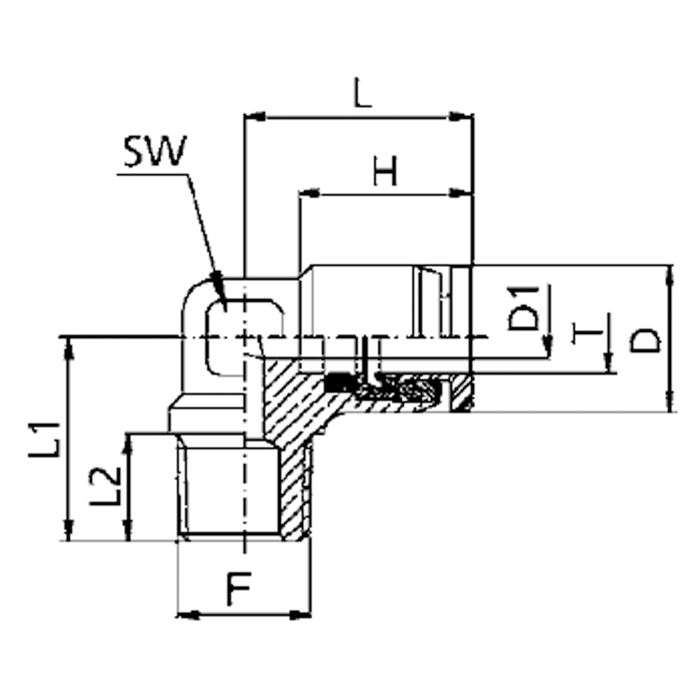

With its compact design and robust construction, this brass push tube fitting is suitable for various applications requiring a 90-degree change in direction. It ensures efficient flow and minimizes space requirements. The fitting's dimensions include a D of 0.394 inches, D1 of 0.118 inches, L of 0.657 inches, L1 of 0.787 inches, and L2 of 0.512 inches.

SKU: INB107-532-021

Supplier Part Number (MPN): INB107-532-021

Alternate Part Numbers: C1LC34, MI-08750174, MINO-00609X65242

Specifications

Brand Asco	Connection Size 2 1/4 in	Connection Type NPT, Push-Fit	Connection Type 1 Push-In Tube	Connection Type 2 NPTF	d1 Dimensions 0.118 in	Dimension Standards JIS B0202/B0203, UNI 571-65	Dimensions 0.394 in Dia x 0.657 in L x 0.492 in H	Finish Nickel-Plated	Fitting Type Elbow	l1 Dimensions 0.787 in	l2 Dimensions 0.512 in	Material Brass	Material Construction Brass	Series INB107 Series

Similar Products

Model Number	Tube O.D. (T)	Thread 1	D	d1 Dimensions	L	L1	l2 Dimensions
INB107-104-020 Brass Push Tube To NPT 90 Elbow	0.25	1/8 NPT	0.472	0.157 in	0.74	0.693	0.531 in
INB107-104-021 Brass Push Tube To NPT 90 Elbow	0.25	1/4 NPT	0.472	0.157 in	0.74	0.831	0.531 in
INB107-308-021 Brass Push Tube To NPT 90 Elbow	0.375	3/8 NPT	0.709	0.295 in	1.004	1.945	0.685 in
INB107-308-022 Brass Push Tube To NPT 90 Elbow	0.375	1/4 NPT	0.709	0.295 in	1.004	0.945	0.685 in
INB107-532-020 Brass Push Tube To NPT 90 Elbow	0.1563	1/8 NPT	0.394	0.118 in	0.657	0.65	0.374 in

Product Questions & Answers (3)

Question by: Marvin C on Jul 21, 2025, 2:39 PM

does this thing work with standard 5/32 tubing or does it need something specific

Answer by: Customer Support on Jul 23, 2025, 6:52 AM

Yeah, 5/32 inch OD tubing is exactly what this fitting is built around. The tube OD comes in at 0.1563 inches, which matches up with standard 5/32 push-to-connect tubing. The male end threads into a 1/4 NPT port, so as long as your equipment has that thread size, you're good to go.

Question by: Wade C on May 23, 2025, 5:03 PM

Can this here elbow fitting handle gettin' bumped around a bit once it's installed?

Answer by: Customer Support on May 25, 2025, 1:12 PM

This fitting's compact and sturdy brass construction should hold up well in applications where it might experience some accidental contact or vibration.

Question by: Rex H on Apr 12, 2025, 4:04 PM

trying to swap out an elbow on a little air line, is this the one that takes 5/32 tube and threads into 1/4 npt?

Answer by: Customer Support on Apr 14, 2025, 3:42 PM

The tube side is 0.16 inch OD (listed as 0.1563, which is 5/32) and the threaded side is 1/4 NPT male. It is a fixed 90 degree elbow, so it turns the line at a right angle while threading into a 1/4 NPT port.
