Brass Push Tube Fitting, 0.50 Inch Tube OD Union

Description & Features

The NUMATICS c/o ASCO LP Brass Push Tube Fitting 0.50 Inch Tube OD Union is designed for seamless integration in industrial fluid systems.

Manufactured from high-quality brass this fitting ensures reliability and durability in demanding applications. Its straight tube union design allows for straightforward assembly and disassembly making maintenance and repairs more efficient. The fitting features a 0.5 inch outer diameter which is ideal for systems requiring robust connections.

Compact with a height of 0.748 inches it enhances space efficiency making it suitable for use in constrained environments. Ideal for sectors requiring precise fluid control this fitting aligns with industry standards to deliver optimal performance.

MPN: INB100-102-000

Supplier Part Number: INB100-102-000

Specifications

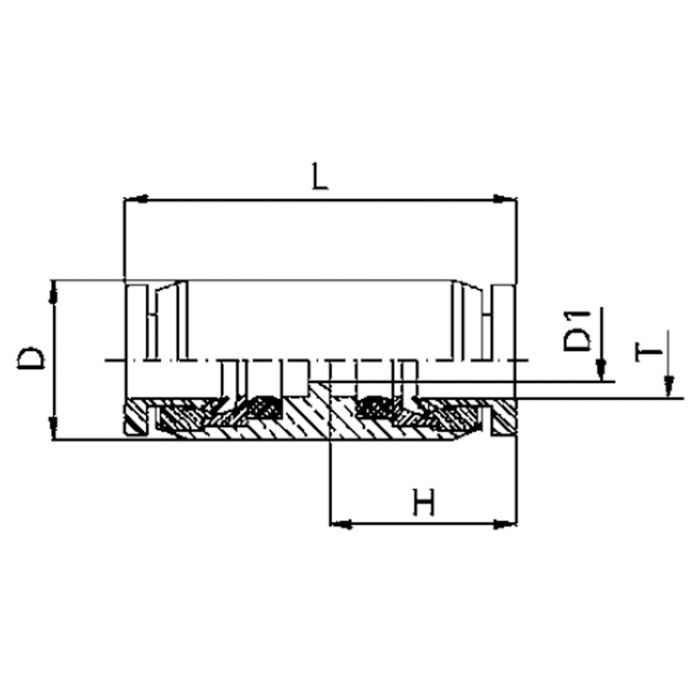

D 0.79	D1 0.41	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	H 0.748 in	L 1.58	Supplier Part Number INB100-102-000	Tube O.D. (T) 0.50	Alternate Part Numbers Alternate Part Number C1LC13, Alternate Part Number MI-04215801, Alternate Part Number MINO-00609X00402	Product Weight 0.13 lbs

Similar Products

Model Number	Tube O.D. (T)	D	D1	L	H
INB100-102-000 Brass Push Tube Union	0.5	0.787	0.413	1.575	0.748 in
INB100-104-000 Brass Push Tube Union	0.25	0.394	0.118	1.024	0.492 in
INB100-308-000 Brass Push Tube Union	0.375	0.709	0.276	1.398	0.669 in
INB100-516-000 Brass Push Tube Union	0.3125	0.591	0.236	1.299	0.63 in
INB100-532-000 Brass Push Tube Union	0.1563	0.394	0.094	0.984	0.472 in

Product Questions & Answers (2)

Question by: Ronnie Y on May 4, 2025, 8:24 PM

Got a half-inch tube OD on my air line setup, this the right union to tie it together without a bunch of adapters in between?

Answer by: Customer Support on May 5, 2025, 9:22 PM

For a 0.5 inch tube OD, yeah, this is the one. It's a straight union, so both ends accept the same size tube and you get a clean inline connection with no reducers or extra fittings needed. The push-to-connect design means assembly is quick and you can pull it apart just as easy when maintenance comes around. Brass construction holds up well in standard industrial fluid and pneumatic line work.

Question by: Rusty S on Jan 24, 2026, 5:02 PM

got a half inch tube line already. is this the kind of fitting that just joins two pieces straight together?

Answer by: Customer Support on Jan 26, 2026, 6:45 AM

For a straight, in-line connection, it is a tube union made to join two lengths of 0.50 inch OD tubing. The design is a straight tube union, so it is meant for connecting tube to tube in the same run.
