Brass Push Tube Fitting, 0.16 Inch Tube OD Union

Description & Features

The Brass Push Tube Fitting 0.16 Inch Tube OD Union from Numatics - c/o ASCO LP is designed for secure and efficient tube connections. With a tube outer diameter of 0.1563 inches this fitting provides reliable performance in various industrial applications.

This push tube fitting features a straight union configuration facilitating straightforward and leak-proof tube connections. Engineered with precision it ensures optimal compatibility and durability.

Ideal for environments requiring robust connections this brass fitting offers excellent resistance to corrosion and wear. The model categorized under Push Tube Fittings meets the industry's stringent requirements.

Height: 0.472 inches. Catalog Number: C1LC17.

Supplier Part Number: INB100-532-000

Specifications

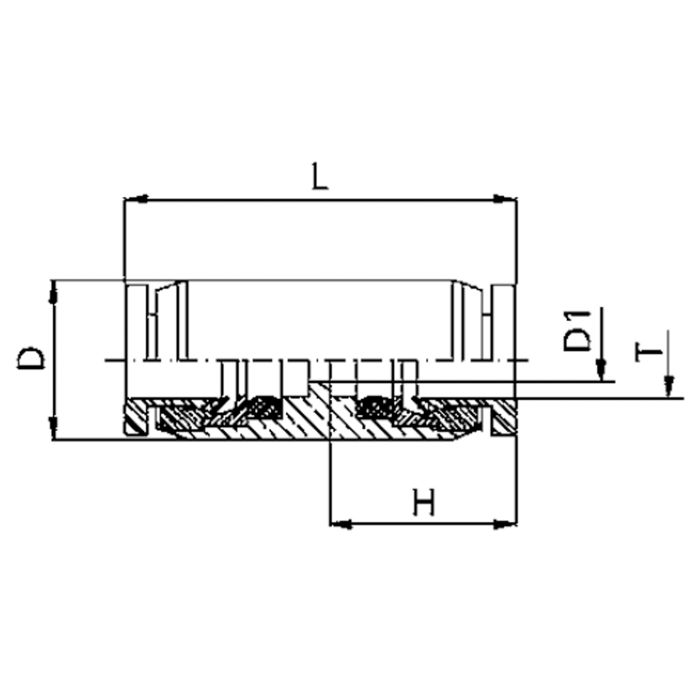

D 0.39	D1 0.09	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	H 0.472 in	L 0.98	Supplier Part Number INB100-532-000	Tube O.D. (T) 0.16	Alternate Part Numbers Alternate Part Number C1LC17, Alternate Part Number MI-04215805, Alternate Part Number MINO-00609X00406	Product Weight 0.02 lbs

Similar Products

Model Number	Tube O.D. (T)	D	D1	L	H
INB100-102-000 Brass Push Tube Union	0.5	0.787	0.413	1.575	0.748 in
INB100-104-000 Brass Push Tube Union	0.25	0.394	0.118	1.024	0.492 in
INB100-308-000 Brass Push Tube Union	0.375	0.709	0.276	1.398	0.669 in
INB100-516-000 Brass Push Tube Union	0.3125	0.591	0.236	1.299	0.63 in
INB100-532-000 Brass Push Tube Union	0.1563	0.394	0.094	0.984	0.472 in

Product Questions & Answers (1)

Question by: Frank P on Dec 21, 2025, 3:46 PM

what size tubing does this union actually take? got some 5/32 line i'm trying to connect up and want to make sure before i order

Answer by: Customer Support on Dec 23, 2025, 11:03 AM

5/32 inch tube is exactly what this fitting is built for. The tube outer diameter is 0.1563 inches, which is your standard 5/32. It's a straight union, so you're connecting two runs of that same size tubing end to end. Push the tube in on each side and you've got your connection.
