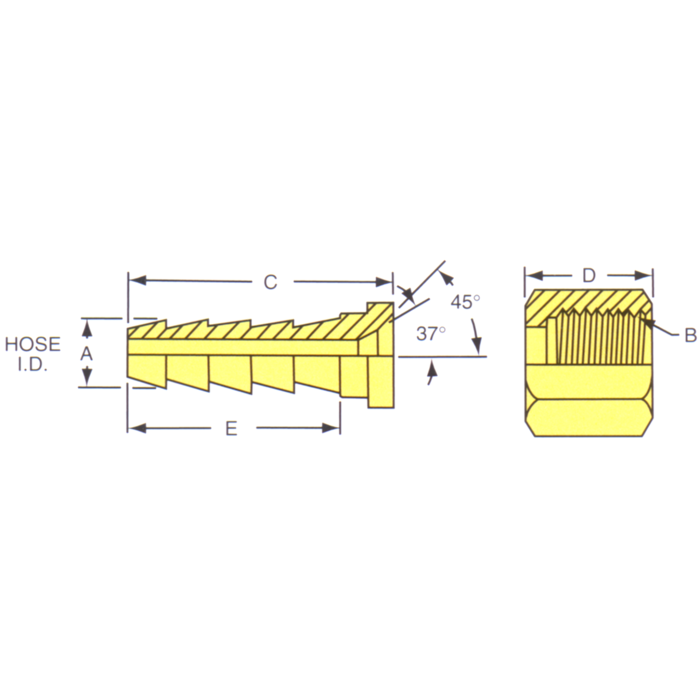

main product photo

Brass Short Shank Type Fitting, 0.31 Inch Hose ID to 1/2-20 SAE 45 deg Flare, Straight

Ask A Question

Description & Features

This Dixon Valve & Coupling brass short shank type fitting is designed for low-pressure fluid transfer, suction, and discharge applications. Constructed from machined free-cutting brass rod CDA 360 alloy, this fitting ensures durability and reliable performance.

Featuring a 0.31 inch hose ID to 1/2-20 SAE 45-degree flare straight connection, this fitting, also known as a short shank brass SAE 45 deg fitting, offers secure attachment and efficient flow. Note that the working pressure of shank type fittings varies based on hose size and construction, clamp type and placement, installation, temperature, and the conveyed product.

SKU: 143-0508

Supplier Part Number (MPN): 1430508K

Alternate Part Numbers: C1FS74, MI-00361885, MINO-00056F96290

Specifications

C
1.31
E
0.97
Brand
Dixon Valve & Co
Brand
Dixon Valve & Co
Pack Size
1.00
UOM
EA
Finish
No
Hose I.D.
0.31
Supplier Part Number
1430508K
Alternate Part Numbers
Alternate Part Number C1FS74, Alternate Part Number MI-00361885, Alternate Part Number MINO-00056F96290
Product Weight
0.05 lbs

Similar Products

Model Number Finish Hose I.D. Thread 1 C E Price Action
Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 7/16-20 SAE 45 deg Flare, Straight

143-0407 Brass Shank SAE 45 deg Fitting

No

0.25

7/16-20

1.25

0.97

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 1/2-20 SAE 45 deg Flare, Straight

143-0408 Brass Shank SAE 45 deg Fitting

No

0.25

1/2-20

1.31

0.97

Brass Short Shank Type Fitting, 0.31 Inch Hose ID to 1/2-20 SAE 45 deg Flare, Straight

143-0508 Brass Shank SAE 45 deg Fitting

No

0.313

1/2-20

1.31

0.97

Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 3/4-16 SAE 45 deg Flare, Straight

143-0612 Brass Shank SAE 45 deg Fitting

No

0.375

3/4-16

1.34

0.97

Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 3/4-16 SAE 45 deg Flare, Straight

143-0812 Brass Shank SAE 45 deg Fitting

No

0.5

3/4-16

1.34

0.97

Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 7/8-14 SAE 45 deg Flare, Straight

143-0814 Brass Shank SAE 45 deg Fitting

No

0.5

7/8-14

1.34

0.97

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 5/8-18 SAE 45 deg Flare, Straight

144-0410 Brass Shank SAE 45 deg Fitting

No

0.25

5/8-18

1.27

0.97

Brass Short Shank Type Fitting, 0.31 Inch Hose ID to 5/8-18 SAE 45 deg Flare, Straight

144-0510 Brass Shank SAE 45 deg Fitting

No

0.313

5/8-18

1.27

0.97

Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 5/8-18 SAE 45 deg Flare, Straight

144-0610 Brass Shank SAE 45 deg Fitting

No

0.375

5/8-18

1.27

0.97

Product Questions & Answers (2)

Question by: Harvey J on May 6, 2025, 2:01 PM
I need a fitting to go from a 5/16" hose to a 1/2-20 SAE flare. Is this the right part?
Answer by: Customer Support on May 8, 2025, 1:39 PM
This fitting is designed to connect a 0.31 inch (5/16") ID hose to a 1/2-20 SAE 45-degree flare connection.
Question by: Shawn S on Nov 13, 2025, 9:09 AM
does this fitting work for low pressure suction lines, or is it more of a discharge-only deal?
Answer by: Customer Support on Nov 14, 2025, 7:28 PM
Low pressure fluid transfer covers both suction and discharge, so it handles either side of that equation. Just keep in mind the working pressure you actually get out of it depends on the hose itself, how many clamps you're running, where they're placed, and what you're moving through the line. The fitting is machined from free cutting brass CDA 360 alloy, so the metal side of things is solid. The hose and clamp setup is really where your pressure ceiling gets set.
