Brass Short Shank Type Fitting, 0.50 Inch ID Hose Splicer

Description & Features

Machined from free-cutting brass CDA 360 alloy, the Brass Short Shank Type Fitting, 0.50 Inch ID Hose Splicer is designed for low pressure fluid transfer applications, including suction and discharge service. The splicer configuration joins two lengths of 1/2-inch ID hose without threaded end connections, making it a straightforward inline coupling solution for compatible hose assemblies.

Dixon Valve & Coupling's short shank design follows standard barb geometry suited to use with hose clamps. Working pressure varies depending on hose construction, clamp type and quantity, clamp placement, installation method, temperature, and the fluid being conveyed, factors that should be confirmed against the specific hose and clamp combination in use.

SKU: 178-0808

Supplier Part Number (MPN): 1780808C

Alternate Part Numbers: C1AL48, MI-00362197, MINO-00056F96602

Specifications

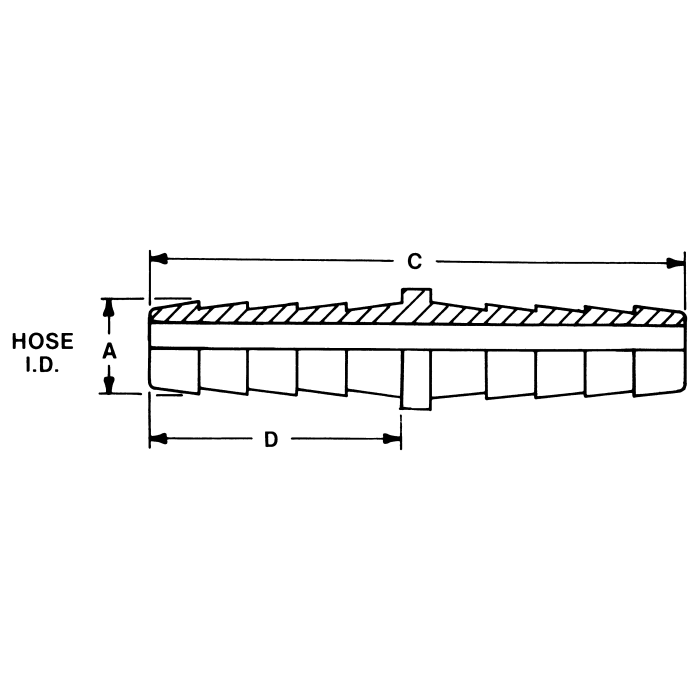

C 2.06	D 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.50	Supplier Part Number 1780808C	Alternate Part Numbers Alternate Part Number C1AL48, Alternate Part Number MI-00362197, Alternate Part Number MINO-00056F96602	Product Weight 0.06 lbs

Similar Products

Model Number	Hose I.D.	C	D
178-0404 Brass Short Shank Hose Splicer	0.25	2.03	0.97
178-0505 Brass Short Shank Hose Splicer	0.313	2.06	0.97
178-0606 Brass Short Shank Hose Splicer	0.375	2.06	0.97
178-1010 Brass Short Shank Hose Splicer	0.625	2.06	0.97
178-1212 Brass Short Shank Hose Splicer	0.75	2.5	1.19
32-092 Brass Short Shank Hose Splicer	0.188

Product Questions & Answers (3)

Question by: Larry M on Aug 23, 2025, 11:05 AM

Trying to splice a 1/2 inch ID hose, is this the right barb size for that?

Answer by: Customer Support on Aug 24, 2025, 1:10 PM

For a 0.50 inch inside diameter hose, this splicer matches that hose ID. It is a short shank brass hose barb splicer meant for joining two hose ends in low pressure fluid transfer, including suction and discharge service.

Question by: Hank R on Jan 22, 2026, 7:44 AM

what's this fitting made out of, and is it the right pick for basic fluid transfer lines?

Answer by: Customer Support on Jan 23, 2026, 12:06 PM

Machined from free cutting brass rod, specifically CDA 360 alloy, this splicer is built for low pressure fluid transfer applications including both suction and discharge service. The 0.50 inch inside diameter is sized to join two lengths of half-inch hose together. For straightforward, low pressure work, it fits the bill.

Question by: Lee R on Dec 24, 2025, 4:37 PM

Will this splicer work for fuel lines?

Answer by: Customer Support on Dec 26, 2025, 3:35 PM

This splicer is designed for low-pressure fluid transfer, suction, and discharge applications. It's important to verify compatibility with the specific fuel type and operating conditions to ensure safe and reliable performance.
