Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 1/4-18 Female NPT, Straight

Description & Features

Machined from free-cutting brass rod (CDA 360 alloy), this short shank fitting is suited for low-pressure fluid transfer, suction, and discharge applications. The Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 1/4-18 Female NPT, Straight connects a 0.375-inch hose ID to a 1/4-18 female NPT thread in a straight configuration. With an overall length of 1.66 inches and a shank diameter of 0.97 inches, it is a compact, reliable choice for hose-to-port connections in light industrial fluid systems.

Manufactured by Dixon Valve & Coupling under catalog number C1AG92, this fitting is part of the Short Shank Brass Industrial Hose Fittings product line. Working pressure performance will depend on the hose construction, clamp type, number and placement of clamps, temperature, and the media being conveyed.

SKU: 104-0604

Supplier Part Number (MPN): 1040604C

Alternate Part Numbers: C1AG92, MI-00361674, MINO-00056F96078

Specifications

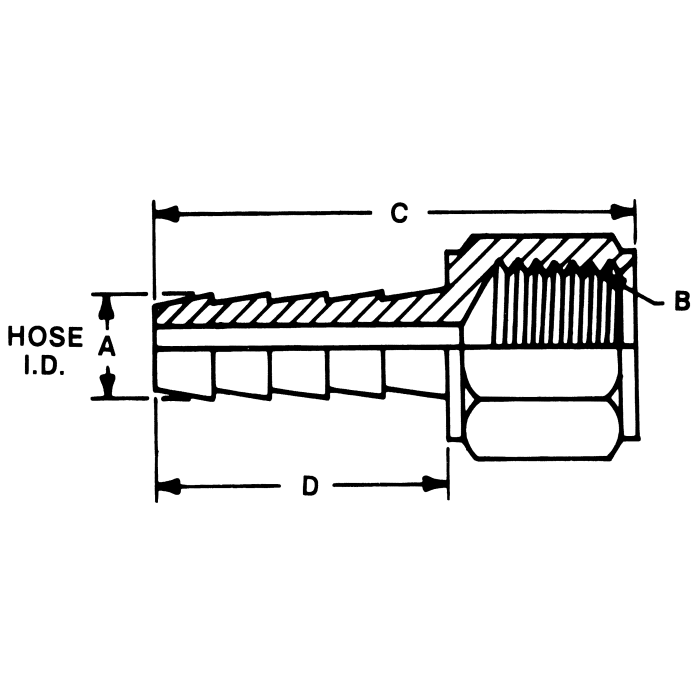

C 1.66	D 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Supplier Part Number 1040604C	Alternate Part Numbers Alternate Part Number 1040604C, Alternate Part Number C1AG92, Alternate Part Number MI-00361674, Alternate Part Number MINO-00056F96078	Product Weight 0.05 lbs

Similar Products

Model Number	Hose I.D.	Thread 1	C	D
104-0404 Brass Short Shank NPT Fitting	0.25	1/4-18	1.66	0.97
104-0504 Brass Short Shank NPT Fitting	0.313	1/4-18	1.66	0.97
104-0604 Brass Short Shank NPT Fitting	0.375	1/4-18	1.66	0.97
104-0606 Brass Short Shank NPT Fitting	0.375	3/8-18	1.66	0.97
104-0806 Brass Short Shank NPT Fitting	0.5	3/8-18	1.66	0.97

Product Questions & Answers (3)

Question by: Ross T on Mar 24, 2025, 10:33 AM

got a 3/8 inch ID hose. is this the right barb size, and what thread is on the other end?

Answer by: Customer Support on Mar 25, 2025, 5:47 PM

It is made for a 0.375 inch hose ID on the barb side, and the threaded end is 1/4-18 female NPT.

Question by: Brett H on May 13, 2025, 5:56 PM

I need a fitting to go from a 3/8" hose to a 1/4" female pipe thread. Is this what I'm lookin' for?

Answer by: Customer Support on May 15, 2025, 6:22 AM

This fitting is designed to connect a 0.38 inch inside diameter hose to a 1/4-18 female NPT thread.

Question by: Wayne R on Feb 17, 2026, 2:00 PM

fitting's made from brass, so I'm guessing it's alright for general fluid lines? what kind of work is this thing actually built for?

Answer by: Customer Support on Feb 19, 2026, 6:49 AM

Low pressure fluid transfer is the main application here, covering both suction and discharge service. The brass construction comes from free-cutting CDA 360 alloy rod, which machines cleanly and holds up well in typical fluid handling setups. It's not a high-pressure fitting, so keep that in mind when you're sizing it up for a job.
