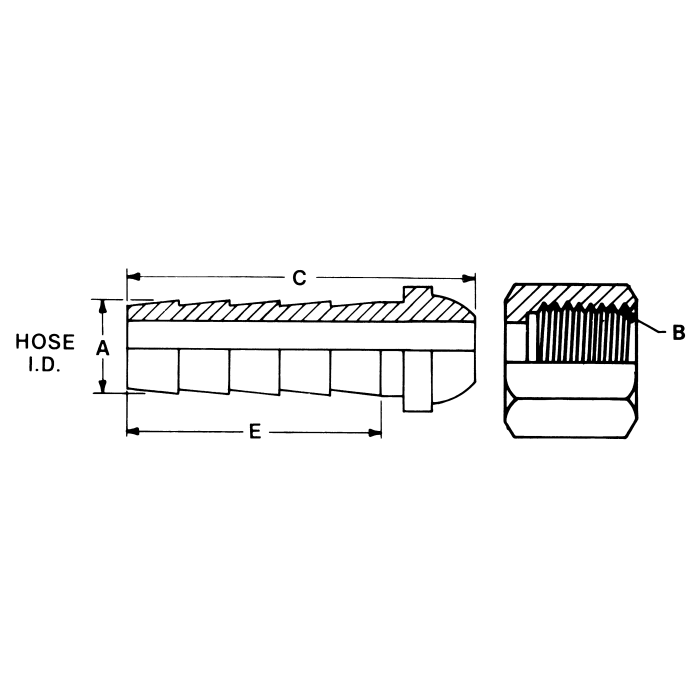

main product photo

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 1/8-27 NPSM Female NPT Swivel, Straight

Ask A Question

Description & Features

This straight brass fitting features a 0.25 inch hose ID connection to a 1/8-27 NPSM female NPT swivel. Designed for low-pressure fluid transfer, suction, and discharge applications, the Brass Short Shank Type Fitting is machined from free-cutting brass rod CDA 360 alloy.

The working pressure for shank type fittings varies based on hose size and construction, clamp type and placement, installation quality, temperature, and conveyed product.

SKU: 124-0402

Supplier Part Number (MPN): 1240402K

Alternate Part Numbers: C1AJ49, MI-00361807, MINO-00056F96212

Specifications

Brand
DIXON
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Barbed, FNPSM Swivel
Connection Type 1
Hose Barbed
Connection Type 2
FNPSM Swivel
Dimension Standards
SAE J476, SAE J512, SAE J514, SAE J516
Dimensions
1.3 in L
e Dimensions
0.97 in
Fitting Type
Hose Barb
For Use With
Hose Clamps and Crimped Ferrules
Hex Size
1/2 in
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
250 psi
Series
124 Series
Sg Construction
Machined from Free Cutting Brass Rod Cad 360 Alloy
Thread Size
1/8-27

Similar Products

Model Number Hose I.D. Thread Size C e Dimensions Price Action
Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

124-0606 Brass Short Shank NPT Fitting

0.375

3/8-18

1.45

0.97 in

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

124-0404 Brass Short Shank NPT Fitting

0.25

1/4-18

1.39

0.97 in

Brass Short Shank Type Fitting, 0.31 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

124-0504 Brass Short Shank NPT Fitting

0.313

1/4-18

1.39

0.97 in

Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

124-0604 Brass Short Shank NPT Fitting

0.375

1/4-18

1.37

0.97 in

Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

124-0806 Brass Short Shank NPT Fitting

0.5

3/8-18

1.42

0.97 in

Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 1/2-14 NPSM Female NPT Swivel, Straight

124-0808 Brass Short Shank NPT Fitting

0.5

1/2-14

1.54

0.97 in

Product Questions & Answers (2)

Question by: Hugh H on Nov 20, 2025, 8:17 PM
what size hose does this barb end fit onto exactly?
Answer by: Customer Support on Nov 22, 2025, 5:20 PM
The barb end is sized for a 1/4 inch inside diameter hose. Pair it with the right clamps and make sure they're seated proper, because the working pressure you get out of it depends on the hose construction, how many clamps you use, where you place them, and what you're running through it.
Question by: Lyle B on Jun 7, 2025, 9:24 PM
got a 1/4 inch ID hose here, what size thread is on the swivel end of this fitting?
Answer by: Customer Support on Jun 9, 2025, 4:47 PM
On the swivel side it’s 1/8-27 NPSM female, and the hose barb side is sized for 0.25 inch hose ID.
