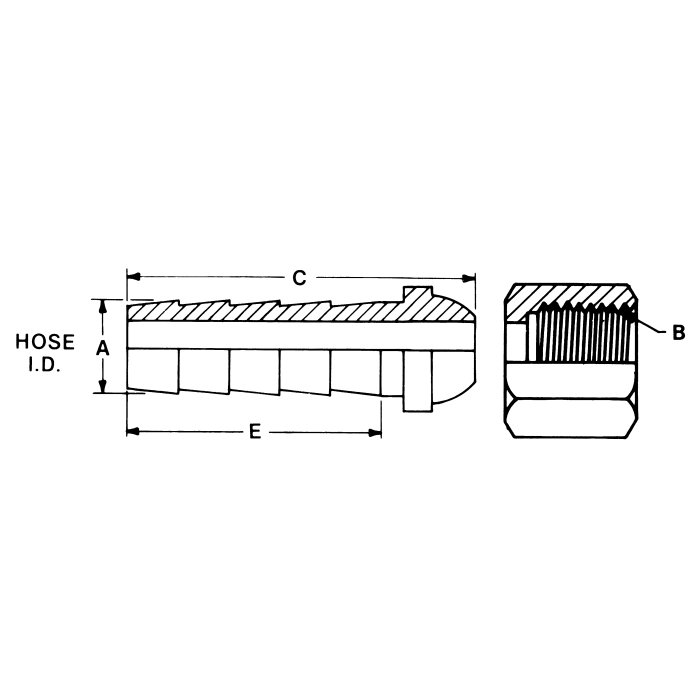

main product photo

Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

Ask A Question

Description & Features

Machined from free-cutting brass rod (CDA 360 alloy), this short shank type fitting connects a 0.375-inch hose ID to a 3/8-18 NPSM female NPT swivel in a straight configuration. The swivel end allows for rotational adjustment during installation, reducing stress on the hose assembly. Dixon Valve & Coupling's Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight is suited for low-pressure fluid transfer, suction, and discharge service.

Working pressure varies depending on hose construction, clamp type and quantity, clamp placement, installation method, temperature, and the fluid being conveyed. Catalog number C1AJ53 corresponds to this fitting within the Dixon short shank brass industrial hose fittings line.

SKU: 124-0606

Supplier Part Number (MPN): 1240606K

Alternate Part Numbers: C1AJ53, MI-00361817, MINO-00056F96222

Specifications

C
1.45
E
0.97
Brand
Dixon Valve & Co
Brand
Dixon Valve & Co
Pack Size
1.00
UOM
EA
Hose I.D.
0.38
Supplier Part Number
1240606K
Alternate Part Numbers
Alternate Part Number C1AJ53, Alternate Part Number MI-00361817, Alternate Part Number MINO-00056F96222
Product Weight
0.10 lbs

Similar Products

Model Number Hose I.D. Thread 1 C E Price Action
Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

124-0606 Brass Short Shank NPT Fitting

0.375

3/8-18 NPSM

1.45

0.97

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 1/8-27 NPSM Female NPT Swivel, Straight

124-0402 Brass Short Shank NPT Fitting

0.25

1/8-27 NPSM

1.3

0.97

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

124-0404 Brass Short Shank NPT Fitting

0.25

1/4-18 NPSM

1.39

0.97

Brass Short Shank Type Fitting, 0.31 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

124-0504 Brass Short Shank NPT Fitting

0.313

1/4-18 NPSM

1.39

0.97

Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

124-0604 Brass Short Shank NPT Fitting

0.375

1/4-18 NPSM

1.37

0.97

Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

124-0806 Brass Short Shank NPT Fitting

0.5

3/8-18 NPSM

1.42

0.97

Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 1/2-14 NPSM Female NPT Swivel, Straight

124-0808 Brass Short Shank NPT Fitting

0.5

1/2-14 NPSM

1.54

0.97

Product Questions & Answers (3)

Question by: Kent H on May 25, 2025, 4:51 PM
Need to swap out a barb fitting on a 3/8 inch ID hose, will this one match up on the hose side and the swivel side?
Answer by: Customer Support on May 26, 2025, 6:40 PM
It is set up for a 0.375 inch hose ID on the barb end and a 3/8-18 NPSM female swivel thread on the other end, in a straight configuration.
Question by: Roger W on Sep 26, 2025, 10:20 AM
got a 3/8 id hose and need to match it up to a pipe thread. does the swivel side hook right up to normal 3/8 inch pipe?
Answer by: Customer Support on Sep 28, 2025, 7:07 AM
Threading on the swivel end is a 3/8-18 NPSM female. That means it will easily mate with standard 3/8 NPT male pipe connections while the barb side slides straight into your 0.375 inch inner diameter hose.
Question by: Eddie R on Oct 5, 2025, 6:40 AM
got a 3/8 inch ID hose, is this the right barb size for it?
Answer by: Customer Support on Oct 6, 2025, 5:53 PM
For hose fit, it’s made for a 0.375 inch hose I.D., which is the same as a 3/8 inch I.D. hose. It’s a short shank brass hose barb style fitting.
