Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

Description & Features

This Brass Short Shank Type Fitting is designed for efficient connection in low-pressure fluid transfer, suction, and discharge applications. Featuring a 0.50-inch hose ID and a 3/8-18 NPSM female NPT swivel, this fitting ensures a reliable and secure connection. Manufactured from durable CDA 360 brass alloy, it offers excellent machinability and corrosion resistance, making it ideal for industrial use. The fitting's straight design facilitates straightforward installation and maintenance.

As part of the Short Shank Brass Industrial Hose Fittings series from Dixon Valve & Coupling, this component is engineered with precision to meet the demands of various industrial environments. The working pressure of shank type fittings can vary based on hose size, construction, clamp use, and installation, underscoring the importance of proper setup for optimal performance.

SKU: 124-0806

Supplier Part Number (MPN): 1240806K

Alternate Part Numbers: C1AJ54, MI-00361821, MINO-00056F96226

Specifications

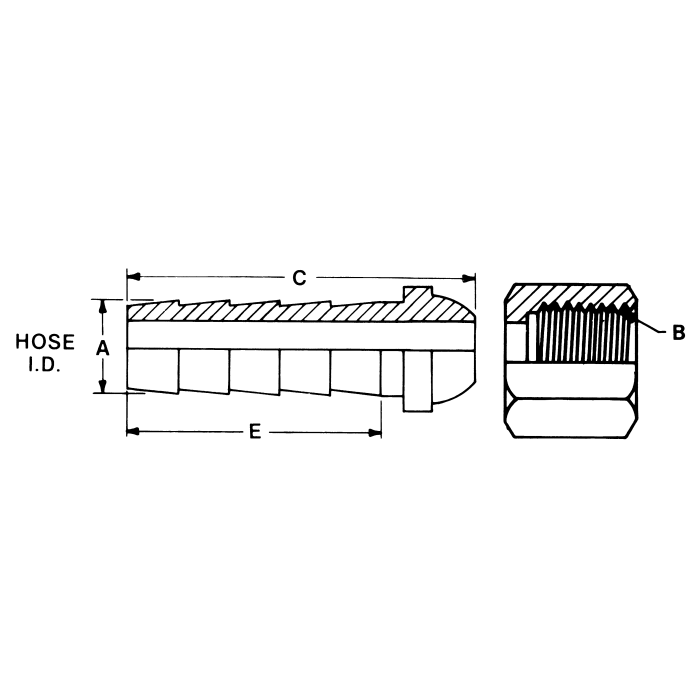

C 1.42	E 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.50	Supplier Part Number 1240806K	Alternate Part Numbers Alternate Part Number C1AJ54, Alternate Part Number MI-00361821, Alternate Part Number MINO-00056F96226	Product Weight 0.08 lbs

Similar Products

Model Number	Hose I.D.	Thread 1	C	E
124-0606 Brass Short Shank NPT Fitting	0.375	3/8-18 NPSM	1.45	0.97
124-0402 Brass Short Shank NPT Fitting	0.25	1/8-27 NPSM	1.3	0.97
124-0404 Brass Short Shank NPT Fitting	0.25	1/4-18 NPSM	1.39	0.97
124-0504 Brass Short Shank NPT Fitting	0.313	1/4-18 NPSM	1.39	0.97
124-0604 Brass Short Shank NPT Fitting	0.375	1/4-18 NPSM	1.37	0.97
124-0806 Brass Short Shank NPT Fitting	0.5	3/8-18 NPSM	1.42	0.97
124-0808 Brass Short Shank NPT Fitting	0.5	1/2-14 NPSM	1.54	0.97

Product Questions & Answers (3)

Question by: Steve T on Apr 1, 2025, 4:15 PM

trying to swap out a barb fitting i busted, what hose size and thread is this one set up for

Answer by: Customer Support on Apr 2, 2025, 9:57 PM

It’s a short shank brass hose barb made for 0.50 inch hose ID, and the threaded end is 3/8-18 NPSM female swivel (female NPT swivel style).

Question by: Wade H on Apr 3, 2025, 2:34 PM

fitting's got a 1/2 inch barb end -- does the swivel side thread onto a standard 3/8 female NPT port or is it something different?

Answer by: Customer Support on Apr 5, 2025, 7:20 AM

Close, but worth clarifying. The swivel end uses 3/8-18 NPSM threading, which is straight mechanical thread rather than tapered NPT. NPSM and NPT share the same thread pitch and diameter, so they will engage, but NPSM relies on a sealing surface or gasket at the face rather than thread taper interference. If your port is a standard 3/8 NPT, make sure there is a proper mating surface for the swivel to seal against.

Question by: Roy R on Dec 23, 2025, 7:30 AM

Will this fitting work for low-pressure fluid transfer?

Answer by: Customer Support on Dec 24, 2025, 12:46 PM

Primarily designed for low-pressure fluid transfer, suction, and discharge, this brass fitting should suit your needs in those applications.
