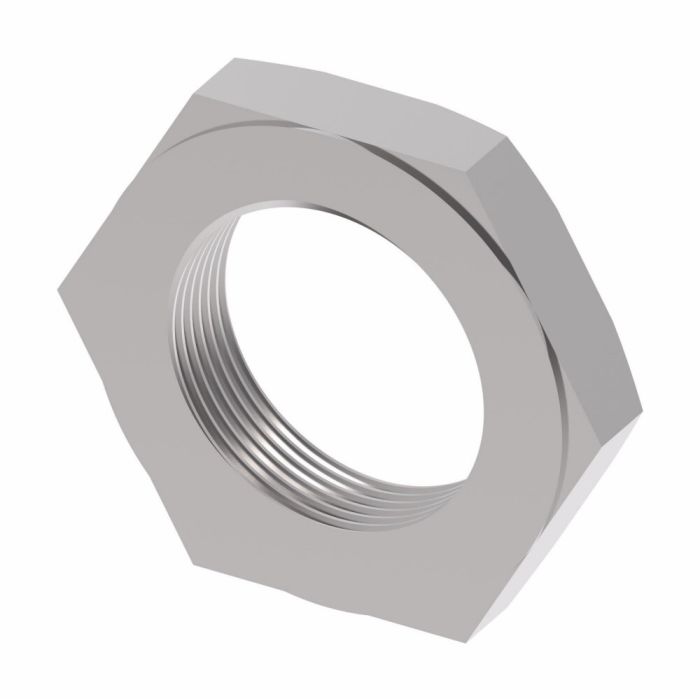

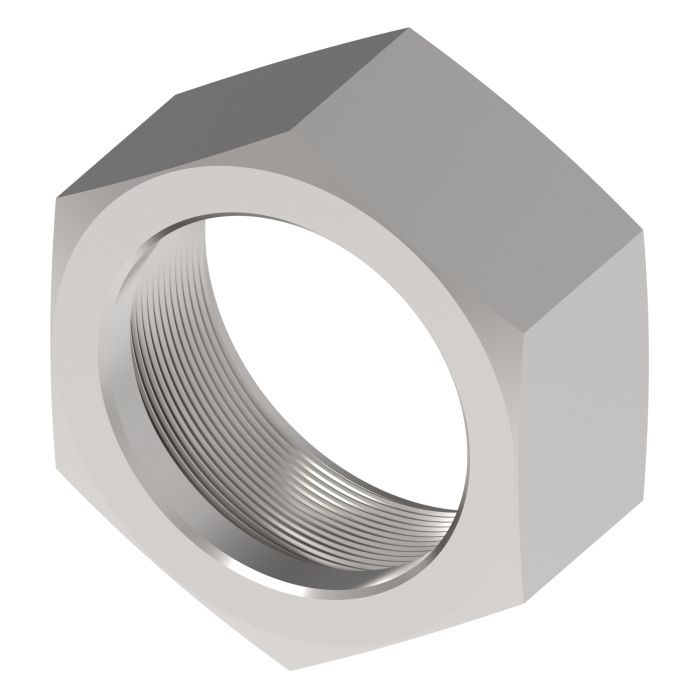

main product photo

Steel Adapter, 0.63 Braze Tube To 1-14 Female O-Ring Face Seal Nut

Ask A Question

Description & Features

This steel adapter is an Eaton Aeroquip FC2326 series spare part nut, designed to connect a 0.63 braze tube to a 1-14 female O-ring face seal nut. It features an A dimension of 0.92 inches.

SKU: FC2326-10S

Supplier Part Number (MPN): FC2326-10S

Alternate Part Numbers: C1EP97, MI-00444209, MINO-00015I00776

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Braze, Female ORFS
Connection Type 1
Female ORFS
Connection Type 2
Female Braze
Dimension Standards
SAE 520110/J1453
Dimensions
0.92 in L
e Dimensions
0.83 in
Finish
Zinc Clear Trivalent Chromate
Fitting Type
Nut
Material
Steel
Material Construction
Carbon Steel
Series
FC2326 Series
Thread Size
1-7/16-12

Similar Products

Model Number Tube O.D. Thread Size A e Dimensions Price Action
Steel Adapter, 0.38 Braze Tube To 11/16-16 Female O-Ring Face Seal Nut

FC2326-06S Braze Tube To Female ORS Nut

0.38

11/16-16

0.67

0.53 in

Steel Adapter, 0.50 Braze Tube To 13/16-16 Female O-Ring Face Seal Nut

FC2326-08S Braze Tube To Female ORS Nut

0.5

11/16-16

0.83

0.65 in

Steel Adapter, 1.00 Braze Tube To 1-7/16-12 Female O-Ring Face Seal Nut

FC2326-16S Braze Tube To Female ORS Nut

1

1-7/16-12

1.1

1.14 in

Product Questions & Answers (1)

Question by: Tammy P on Oct 23, 2025, 8:29 PM
got a braze tube fitting coming off a busted hydraulic line and need to know if this nut will match up to a 1-14 female O-ring face seal connection, that right?
Answer by: Customer Support on Oct 25, 2025, 10:33 AM
Yeah, that's exactly what this part does. The FC2326-10S connects a 0.63 inch braze tube on one end to a 1-14 female O-ring face seal nut on the other. The A dimension comes in at 0.92 inches, so as long as your braze tube is 0.63 and your mating connection is a 1-14 ORFS, you're working with the right part.
