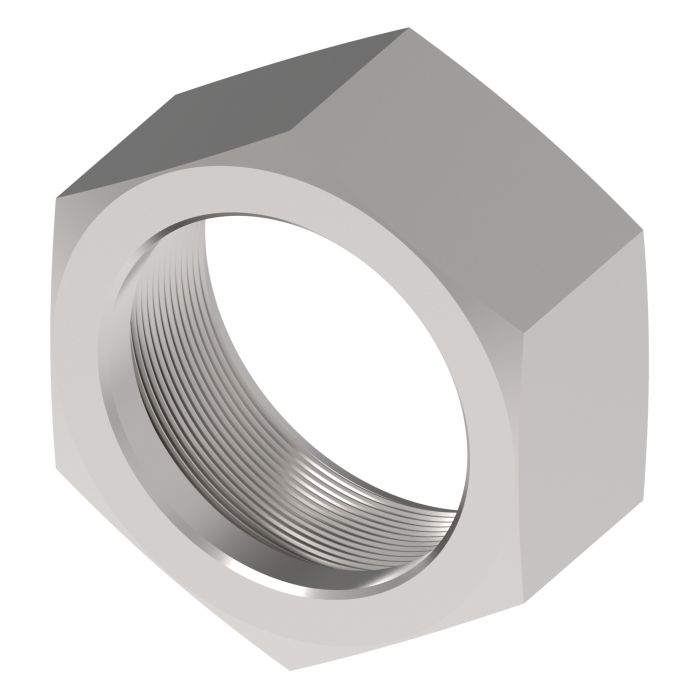

main product photo

Steel Adapter, 1.00 Braze Tube To 1-7/16-12 Female O-Ring Face Seal Nut

Ask A Question

Description & Features

This steel adapter facilitates a secure connection between a 1.00 braze tube and a 1-7/16-12 female O-ring face seal nut. It is part of the Eaton Aeroquip FC2326 series.

With an A dimension of 1.1, this steel adapter ensures reliable performance in demanding hydraulic applications. Reference the provided fluid compatibility document link for proper fluid selection.

SKU: FC2326-16S

Supplier Part Number (MPN): FC2326-16S

Alternate Part Numbers: C1EP99

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female Braze, Female ORFS
Connection Type 1
Female ORFS
Connection Type 2
Female Braze
Dimension Standards
SAE 520110/J1453
Dimensions
1.1 in L
e Dimensions
1.14 in
Finish
Zinc Clear Trivalent Chromate
Fitting Type
Nut
Material
Steel
Material Construction
Carbon Steel
Series
FC2326 Series
Thread Size
1-7/16-12

Similar Products

Model Number Tube O.D. Thread Size A e Dimensions Price Action
Steel Adapter, 0.38 Braze Tube To 11/16-16 Female O-Ring Face Seal Nut

FC2326-06S Braze Tube To Female ORS Nut

0.38

11/16-16

0.67

0.53 in

Steel Adapter, 0.50 Braze Tube To 13/16-16 Female O-Ring Face Seal Nut

FC2326-08S Braze Tube To Female ORS Nut

0.5

11/16-16

0.83

0.65 in

Steel Adapter, 0.63 Braze Tube To 1-14 Female O-Ring Face Seal Nut

FC2326-10S Braze Tube To Female ORS Nut

0.63

1-7/16-12

0.92

0.83 in

Product Questions & Answers (3)

Question by: Johnny R on Jun 12, 2025, 8:28 PM
Hey, can this adapter handle high pressure hydraulic systems or is it more for lighter duty stuff?
Answer by: Customer Support on Jun 14, 2025, 6:16 AM
This steel adapter is designed for demanding hydraulic applications, ensuring a secure connection between a 1.00 braze tube and a 1-7/16-12 female O-ring face seal nut.
Question by: Travis M on Oct 7, 2025, 9:55 PM
trying to figure out if this is the right part to replace the nut on my FC2326 fitting, is this actually a Danfoss/Eaton FC2326 series component?
Answer by: Customer Support on Oct 9, 2025, 8:39 AM
Yeah, that's exactly what it is. Part of the Eaton Aeroquip FC2326 series, sold specifically as a spare part nut for that line. The SKU is FC2326-16S and it also carries catalog number C1EP99, so if you're cross-referencing against a Danfoss or Eaton parts list, either of those should get you where you need to go.
Question by: Ralph B on Mar 23, 2026, 8:05 AM
trying to replace a nut on an Aeroquip line, is FC2326-16S the one that goes from a 1.00 braze tube to a 1-7/16-12 female ORFS?
Answer by: Customer Support on Mar 24, 2026, 3:40 PM
Match it up by the end connections. FC2326-16S is a steel adapter in the Eaton Aeroquip FC2326 series that connects a 1.00 braze tube on one side to a 1-7/16-12 female O-ring face seal nut on the other.
