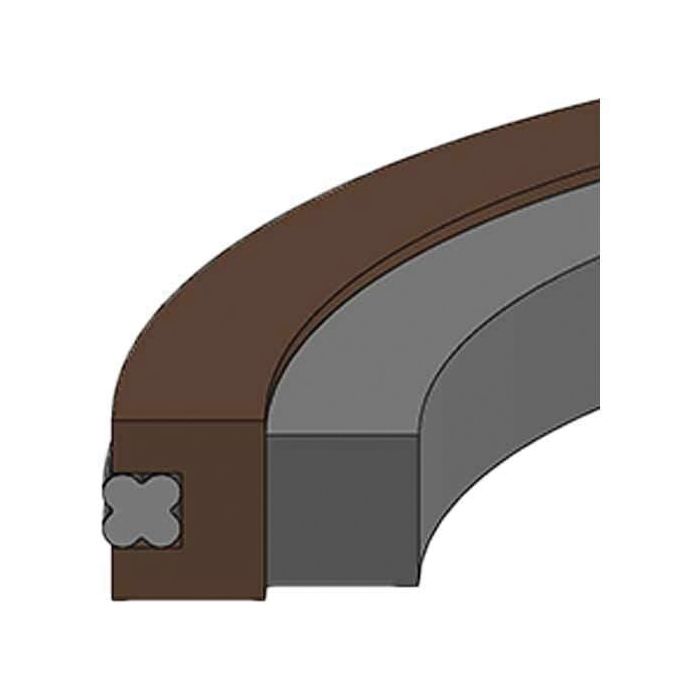

main product photo

Style PSC Bronze Filled Piston Seal, 2.50 Inch Bore Diameter, 1.88 Inch Groove Diameter, Inch Groove Width

Ask A Question

Description & Features

The Style PSC Bronze Filled Piston Seal is a high-performance component designed for demanding hydraulic applications. With a bore diameter of 2.50 inches and a groove diameter of 1.88 inches, this seal ensures optimal fit and function in various industrial settings. Crafted from 40% bronze-filled PTFE, it provides excellent wear resistance and longevity, even under pressures up to 5,000 PSI. A robust rubber energizer and quattro ring enhance sealing efficiency across a wide temperature range from -40°F to 220°F.

Manufactured by Hercules Sealing Products, this piston seal is ideal for use in systems requiring precise sealing without wear rings. Its design accommodates bore tolerances of +0.004/-0 inches and groove width tolerances of +0.005/-0 inches, ensuring compatibility with a variety of piston diameters. The Style PSC Bronze Filled Piston Seal is a reliable choice for maintaining system integrity in harsh environments.

SKU: PSQ-40

Supplier Part Number (MPN): PSQ-40

Alternate Part Numbers: C1GM40, MI-04668659, MINO-00407X10182

Specifications

Bore
2.50
Bore Tolerance (in)
+0.004/-0
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Groove Dia. E
1.88
Groove Width Tolerance (in)
+0.005 / -0
Piston Dia. F
2.50
Seal Height B
0.27
Supplier Part Number
PSQ-40
Alternate Part Numbers
Alternate Part Number C1GM40, Alternate Part Number MI-04668659, Alternate Part Number MINO-00407X10182
Product Weight
0.05 lbs

Similar Products

Model Number Bore Seal Height B Groove Width D Groove Dia. E Piston Dia. F Bore Tolerance (in) Groove Width Tolerance (in) Price Action
Style PSC Bronze Filled Piston Seal, 2.50 Inch Bore Diameter, 1.88 Inch Groove Diameter, Inch Groove Width

PSQ-40 Bronze Filled Piston Seal

2.5

0.271

1.884

2.499

+0.004/-0

+0.005 / -0

Style PSC Bronze Filled Piston Seal, 3.00 Inch Bore Diameter, 2.38 Inch Groove Diameter, Inch Groove Width

PSQ-48 Bronze Filled Piston Seal

3

0.271

2.384

2.999

+0.004/-0

+0.005 / -0

Style PSC Bronze Filled Piston Seal, 3.50 Inch Bore Diameter, 2.88 Inch Groove Diameter, Inch Groove Width

PSQ-56 Bronze Filled Piston Seal

3.5

0.271

2.884

3.499

+0.004/-0

+0.005 / -0

Style PSC Bronze Filled Piston Seal, 4.00 Inch Bore Diameter, 3.38 Inch Groove Diameter, Inch Groove Width

PSQ-64 Bronze Filled Piston Seal

4

0.271

3.384

3.999

+0.004/-0

+0.005 / -0

Style PSC Bronze Filled Piston Seal, 5.00 Inch Bore Diameter, 4.38 Inch Groove Diameter, Inch Groove Width

PSQ-80 Bronze Filled Piston Seal

5

0.271

4.384

4.999

+0.004/-0

+0.005 / -0

Product Questions & Answers (2)

Question by: Terry T on Jun 30, 2025, 7:28 PM
What kind of pressure can this seal handle without failing?
Answer by: Customer Support on Jul 2, 2025, 7:12 AM
This Style PSC piston seal is rated to handle pressures from 0 to 5,000 PSI, making it suitable for demanding hydraulic applications.
Question by: Joyce R on Jan 16, 2026, 2:15 PM
bore says 2.50 inches -- does that mean the piston diameter is also 2.50, or is there a difference I need to account for when ordering?
Answer by: Customer Support on Jan 17, 2026, 2:37 PM
The piston diameter for this seal is listed at 2.499 inches, so there is a slight undersize compared to the bore. That gap is intentional and accounts for proper fit. The bore tolerance runs +0.004/-0 inches, and the groove width tolerance is +0.005/-0 inches. Those dimensions are also specific to pistons without wear rings, so if your setup uses wear rings, this particular seal is not the right match.
