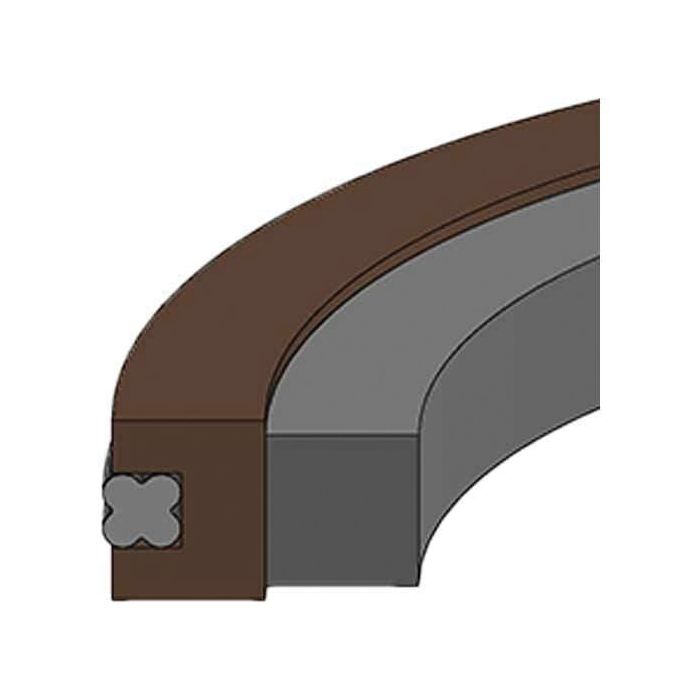

Style PSC Bronze Filled Piston Seal, 3.00 Inch Bore Diameter, 2.38 Inch Groove Diameter, Inch Groove Width

Description & Features

Constructed from 40% bronze filled PTFE with a rubber energizer and quattro ring, this seal is engineered for reliable performance across a pressure range of 0 to 5,000 PSI and a temperature range of -40°F to 220°F. The Style PSC Bronze Filled Piston Seal, 3.00 Inch Bore Diameter, 2.38 Inch Groove Diameter is a Hercules Sealing Products component designed for hydraulic cylinder piston applications requiring dimensional precision and material durability. It features a 3.00 inch bore with a tolerance of +0.004/-0, a groove diameter of 2.384 inches, a piston diameter of 2.999 inches, and a seal height of 0.271 inches. Groove width tolerance is held to +0.005/-0, supporting consistent fitment in machined cylinder assemblies.

SKU: PSQ-48

Supplier Part Number (MPN): PSQ-48

Alternate Part Numbers: C1GN12, MI-03070468, MINO-00407X11299

Specifications

Bore 3	Bore Tolerance (in) +0.004/-0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 2.38	Groove Width Tolerance (in) +0.005 / -0	Piston Dia. F 3.00	Seal Height B 0.27	Supplier Part Number PSQ-48	Alternate Part Numbers Alternate Part Number C1GN12, Alternate Part Number MI-03070468, Alternate Part Number MINO-00407X11299	Product Weight 0.05 lbs

Similar Products

Model Number	Bore	Seal Height B	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Groove Width Tolerance (in)
PSQ-40 Bronze Filled Piston Seal	2.5	0.271	1.884	2.499	+0.004/-0	+0.005 / -0
PSQ-48 Bronze Filled Piston Seal	3	0.271	2.384	2.999	+0.004/-0	+0.005 / -0
PSQ-56 Bronze Filled Piston Seal	3.5	0.271	2.884	3.499	+0.004/-0	+0.005 / -0
PSQ-64 Bronze Filled Piston Seal	4	0.271	3.384	3.999	+0.004/-0	+0.005 / -0
PSQ-80 Bronze Filled Piston Seal	5	0.271	4.384	4.999	+0.004/-0	+0.005 / -0

Product Questions & Answers (2)

Question by: Tony S on Aug 31, 2025, 8:14 PM

got a 3 inch bore cylinder. is this seal the right size for that, or am i lookin at the wrong one

Answer by: Customer Support on Sep 2, 2025, 8:09 AM

For a 3.00 inch bore, the bore dimension on this seal matches at 3.000 with a +0.004/-0 tolerance. The matching groove diameter is 2.384 inches, piston diameter is 2.999 inches, and seal height is 0.271 inches, so it is meant to fit a piston and gland machined to those dimensions.

Question by: Marvin M on Mar 21, 2026, 10:47 AM

Got a cylinder with a 3-inch bore that needs a new piston seal, this bronze filled PTFE style gonna hold up under pressures around 4,500 PSI?

Answer by: Customer Support on Mar 23, 2026, 6:42 AM

At 4,500 PSI you're well within the rated range for this seal. It's built to handle anywhere from 0 up to 5,000 PSI, so that pressure level won't push it anywhere near its limits. The 40% bronze filled PTFE construction handles that kind of load without the deformation you'd see from a plain PTFE seal under sustained pressure.
