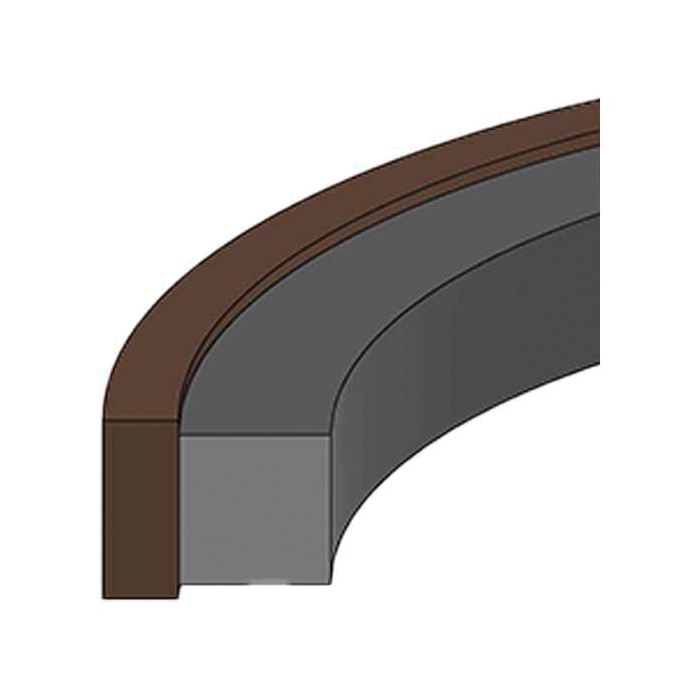

Style 1850 Bronze Filled PTFE Piston Seal, 6.00 Inch Bore Diameter, 5.24 Inch Groove Diameter, Inch Groove Width

Description & Features

The Style 1850 Bronze Filled PTFE Piston Seal from Hercules Sealing Products is suitable for use in a variety of hydraulic applications. This piston seal has a 6.00 inch bore diameter and a 5.24 inch groove diameter.

This seal is constructed from bronze filled PTFE, with a rubber energizer. It is designed for piston diameters with a dimension "F" of 5.999 inches, and is interchangeable with the PS1800 style piston seal. It is suitable for use in systems with pressures ranging from 0 to 5000 PSI, and temperatures from -40°F to +220°F.

SKU: PS1850-96

Supplier Part Number (MPN): PS1850-96

Alternate Part Numbers: C1KM94

Specifications

Bore 6	Bore Tolerance (in) +0.002/-0	Cross Section Tolerance (in) ±0.005	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 5.24	Groove Width Tolerance (in) ±0.002	Piston Dia. F 6.00	Piston Dia. Tolerance (in) +0/-0.007	Seal Cross Section C 0.14	Seal Height B 0.36	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1850-96	Alternate Part Numbers Alternate Part Number C1KM94	Product Weight 0.22 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Width D	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Piston Dia. Tolerance (in)	Cross Section Tolerance (in)	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Price	Action
PS1850-48 Bronze Filled PTFE Piston Seal	3	0.269	0.087		2.44	2.999	+0.002/-0	+0/-0.006	+0.006 / -0	±0.002	+0.005 / -0
PS1850-96 Bronze Filled PTFE Piston Seal	6	0.362	0.142		5.238	5.999	+0.002/-0	+0/-0.007	±0.005	±0.002	+0.005 / -0

Product Questions & Answers (1)

Question by: Denise P on Oct 21, 2025, 2:22 PM

got a 6 inch bore cylinder, is this the right piston seal or am i gonna be fighting it?

Answer by: Customer Support on Oct 23, 2025, 6:05 AM

The key numbers are a 6.00 inch bore, a piston diameter “F” of 5.999 inches, and a groove diameter (E) of 5.238 inches. If your piston and groove match those dimensions and tolerances, this Style 1850 seal is the correct size for that setup.
